6EEA2
ObsoleteTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
6EEA2
ObsoleteTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EEA2 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Right Angle, Flange |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6EEA Series

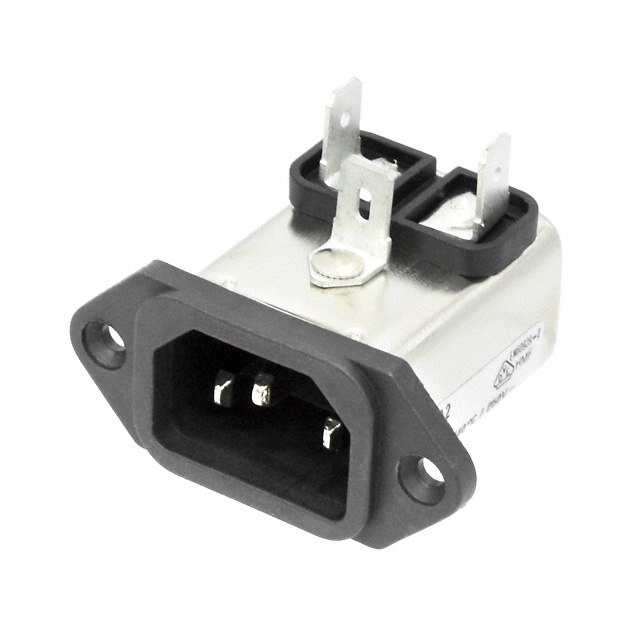

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange, Right Angle
Documents
Technical documentation and resources
