807-033-541-101
ActiveEDAC Inc.

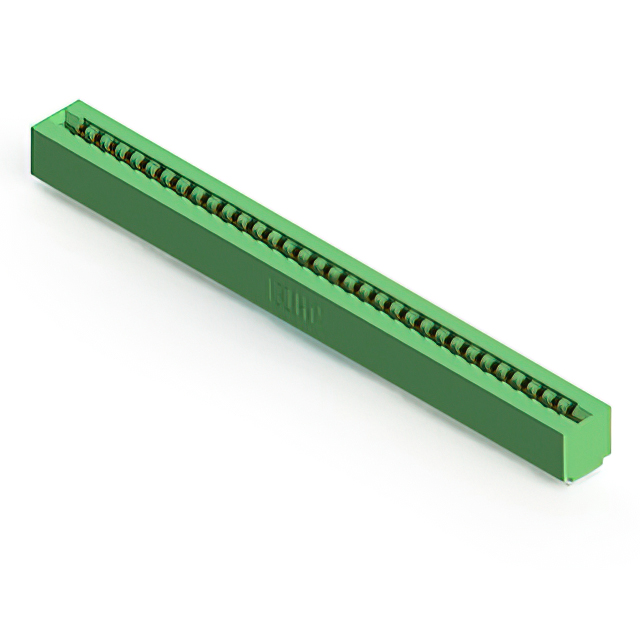

CARD EDGE CONNECTOR, 33 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, LOCKING, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-033-541-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 33 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, LOCKING, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-033-541-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 66 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 1 |
807-033 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Termination | Termination Rows | Material - Insulation | Contact Type | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions | Contact Finish | Color | Card Type | Mounting Type | Number of Positions/Bay/Row [custom] | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 1 | 33 | Tin | Green | Non Specified - Single Edge | Through Hole | 33 | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | ||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Wire Wrap | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 2 | 66 | Gold | Green | Non Specified - Dual Edge | Through Hole | 33 | Female | Copper Alloy | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder Eyelet(s) | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 1 | 33 | Tin | Green | Non Specified - Single Edge | Through Hole | 33 | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | ||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 1 | 33 | Gold | Green | Non Specified - Single Edge | Through Hole Right Angle | 33 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder Eyelet(s) | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 2 | 66 | Tin | Green | Non Specified - Dual Edge | Through Hole | 33 | Female | Side Mount Opening Unthreaded | Copper Alloy | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 1 | 33 | Gold | Green | Non Specified - Single Edge | Through Hole Right Angle | 33 | Female | Copper Alloy | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 2 | 66 | Tin | Green | Non Specified - Dual Edge | Through Hole Right Angle | 33 | Female | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Copper Alloy | ||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 2 | 66 | Tin | Green | Non Specified - Dual Edge | Through Hole | 33 | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | ||||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Wire Wrap | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 1 | 33 | Gold | Green | Non Specified - Single Edge | Through Hole | 33 | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | 1 | Diallyl Phthalate (DAP) | Semi Bellows | 0.156 in | 3.96 mm | 2 | 66 | Gold | Green | Non Specified - Dual Edge | Through Hole Right Angle | 33 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 208.73 | |
Description
General part information
807-033 Series
66 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
