EM2696AV63HR2S1XX

Obsolete

CARLO GAVAZZI

3PH ENERGY ANALYZER 120/208VAC

Search across all available documentation for this part.

Obsolete

CARLO GAVAZZI

3PH ENERGY ANALYZER 120/208VAC

Technical Specifications

Parameters and characteristics for this part

Specification	EM2696AV63HR2S1XX

Display Characters - Height	9.5 mm
Display Characters - Height	0.374 in
Display Type	LCD - Black Characters, White Backlight
Ingress Protection	IP50
Measuring Range	60 Hz
Measuring Range [Max]	10 A, 208 VAC
Measuring Range [Min]	5 A, 120 VAC
Measuring Type	Current (3-Phase), Voltage
Number of Characters Per Row	4, 8
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Type	Relay (2)
Panel Cutout Dimensions [x]	68 mm
Panel Cutout Dimensions [y]	68 mm
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	260 VAC
Voltage - Supply [Min]	90 VAC

Part	Ingress Protection	Display Characters - Height	Display Characters - Height	Output Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Display Type	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Max]	Measuring Range	Measuring Range [Min]	Number of Characters Per Row	Type	Measuring Type
CARLO GAVAZZI EM2696AV63HR2S1XX	IP50	9.5 mm	0.374 in	Relay (2)	68 mm	68 mm	260 VAC	90 VAC	Screw Terminal	LCD - Black Characters White Backlight	55 °C	-25 °C	10 A 208 VAC	60 Hz	5 A 120 VAC	4 8	Energy Monitor	Current (3-Phase) Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

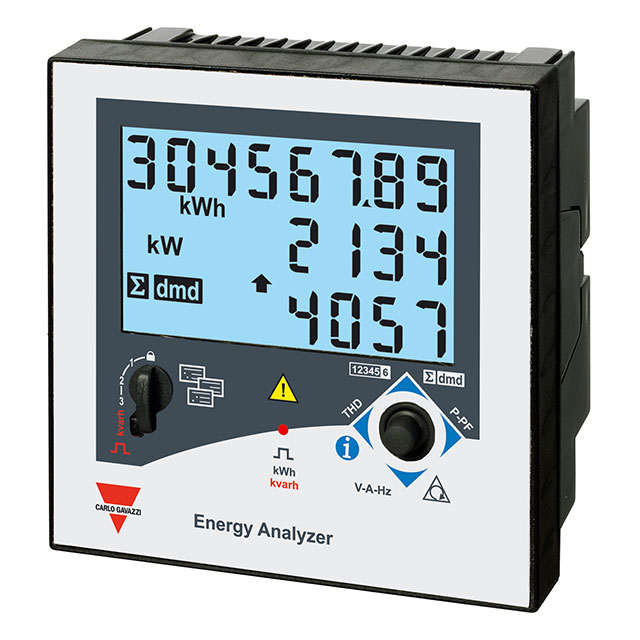

Energy Monitor LCD - Black Characters, White Backlight Display Panel Mount
