60-12-4997-1674

Active

Parker Chomerics

THERM PAD 34.93X20.96MM W/ADH

Search across all available documentation for this part.

Active

Parker Chomerics

THERM PAD 34.93X20.96MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Adhesive	Color	Usage	Backing, Carrier	Shelf Life	Thermal Conductivity	Shelf Life Start	Shape	Thickness [custom]	Thickness [custom]	Type	Outline [x]	Outline [y]	Thickness	Thickness
Parker Chomerics 60-12-4997-T500	Adhesive - One Side	Green	TO-66	Fiberglass	18 Months	2.1 W/m-K	Date of Shipment	Rhombus	0.254 mm	0.01 in	Insulator Pad Sheet	34.93 mm	20.96 mm
Parker Chomerics 60-12-4997-1671	Adhesive - One Side	White	TO-66	Fiberglass	18 Months	2.6 W/m-K	Date of Shipment	Rhombus			Insulator Pad Sheet	34.93 mm	20.96 mm	0.381 mm	0.015 in
Parker Chomerics 60-12-4997-T441-08	Adhesive - One Side	Pink	TO-66	Fiberglass	18 Months	1.1 W/m-K	Date of Shipment	Rhombus			Insulator Pad Sheet	34.93 mm	20.96 mm	0.203 mm	0.008 in
Parker Chomerics 60-12-4997-1674	Adhesive - One Side	Blue	TO-66	Fiberglass	12 Months		Date of Shipment	Rhombus	0.254 mm	0.01 in	Insulator Pad Sheet	34.93 mm	20.96 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.70

General part information

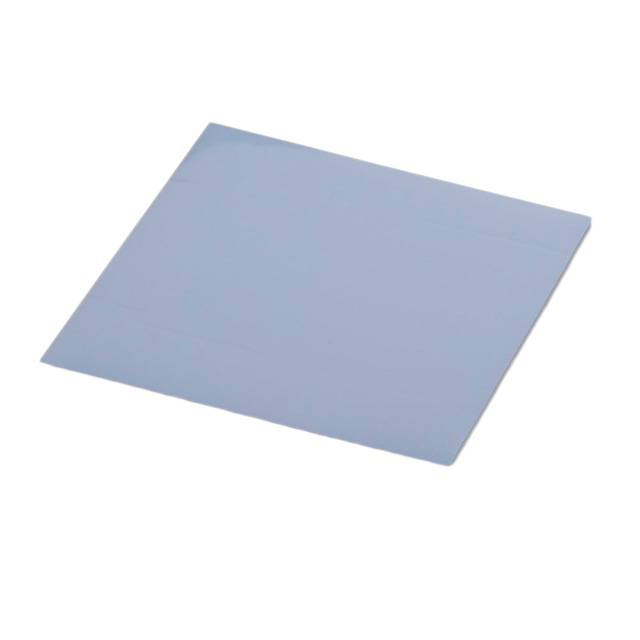

Thermal Pad Blue 34.93mm x 20.96mm Rhombus Adhesive - One Side
