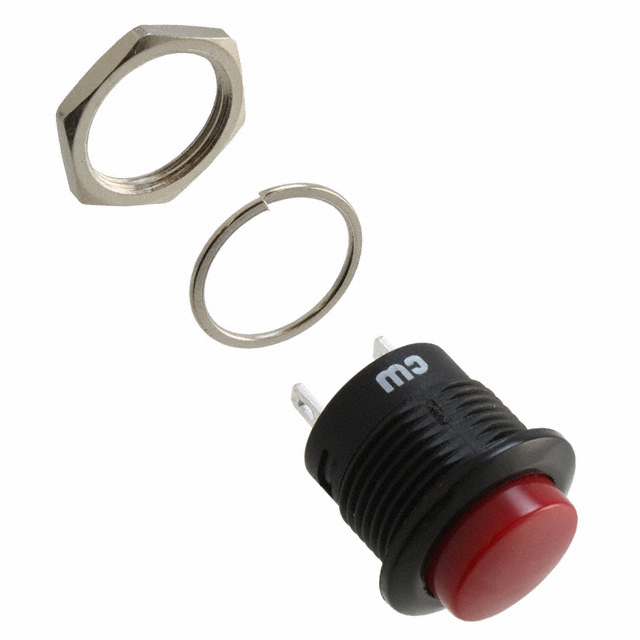

GPB507A05BR
ActiveCW Industries
PUSHBUTTON SWITCHES OFF-(ON) PUSHBUTTON RED
GPB507A05BR
ActiveCW Industries
PUSHBUTTON SWITCHES OFF-(ON) PUSHBUTTON RED
Description
General part information
GPB507 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | GPB507A05BR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating | 6 A |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Diameter | 16 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
