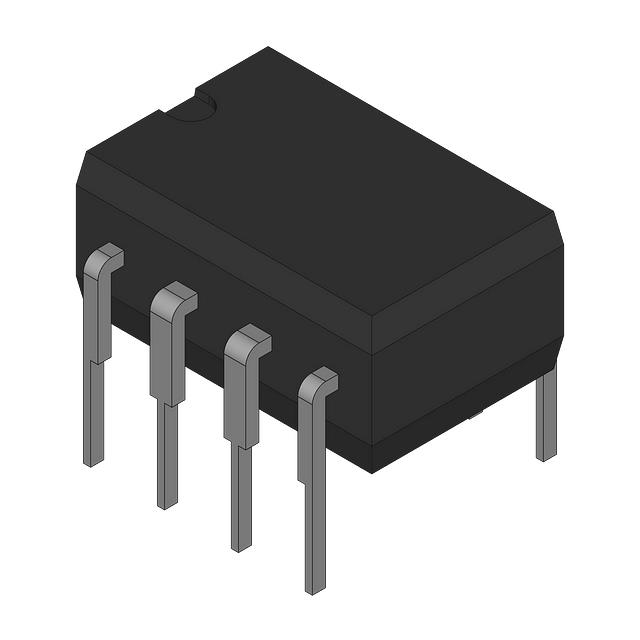

TSC426EPA
ActiveAnalog Devices Inc./Maxim Integrated
TSC426 - BUFFER/INVERTER BASED M
Deep-Dive with AI
Search across all available documentation for this part.
TSC426EPA
ActiveAnalog Devices Inc./Maxim Integrated
TSC426 - BUFFER/INVERTER BASED M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSC426EPA | TSC426 Series |
|---|---|---|
| Channel Type | - | Independent |
| Current - Peak Output (Source, Sink) | - | 1.5 A |
| Driven Configuration | - | Low-Side |
| Gate Type | - | N-Channel, P-Channel MOSFET |
| Grade | - | Military |
| Input Type | - | Inverting |
| Mounting Type | - | Through Hole, Surface Mount |
| null | - | |
| Number of Drivers | - | 2 |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | 0 °C |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -55 °C |
| Package / Case | - | 0.3 in |
| Package / Case | - | 8-DIP, 8-CDIP, Die |
| Package / Case | - | 7.62 mm |
| Qualification | - | MIL-STD-883 |
| Rise / Fall Time (Typ) | - | 25 ns |
| Rise / Fall Time (Typ) | - | 25 ns |
| Supplier Device Package | - | 8-PDIP, 8-CERDIP, Die |
| Voltage - Supply | - | 18 V |
| Voltage - Supply | - | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 141 | $ 2.13 | |
TSC426 Series
IC GATE DRVR LOW-SIDE 8DIP
| Part | Mounting Type | Channel Type | Current - Peak Output (Source, Sink) | Operating Temperature [Max] | Operating Temperature [Min] | Gate Type | Package / Case | Package / Case | Package / Case | Driven Configuration | Number of Drivers | Supplier Device Package | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Input Type | Grade | Operating Temperature [Max] | Operating Temperature [Min] | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TSC426CPA+ | Through Hole | Independent | 1.5 A, 1.5 A | 70 °C | 0 °C | N-Channel, P-Channel MOSFET | 0.3 in | 8-DIP | 7.62 mm | Low-Side | 2 | 8-PDIP | 25 ns | 25 ns | 18 V | 4.5 V | Inverting | ||||
Analog Devices Inc./Maxim Integrated TSC426MJA/883B | Through Hole | Independent | 1.5 A, 1.5 A | N-Channel, P-Channel MOSFET | 0.3 in | 8-CDIP | 7.62 mm | Low-Side | 2 | 8-CERDIP | 25 ns | 25 ns | 18 V | 4.5 V | Inverting | Military | 125 °C | -55 °C | MIL-STD-883 | ||
Analog Devices Inc./Maxim Integrated TSC426C/D | Surface Mount | Independent | 1.5 A, 1.5 A | 70 °C | 0 °C | N-Channel, P-Channel MOSFET | Die | Low-Side | 2 | Die | 25 ns | 25 ns | 18 V | 4.5 V | Inverting | ||||||
Analog Devices Inc./Maxim Integrated TSC426MJA/883B | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TSC426EPA |
Description
General part information
TSC426 Series
Gate Driver IC
Documents
Technical documentation and resources
No documents available
