S11B-XH-A-1

Active

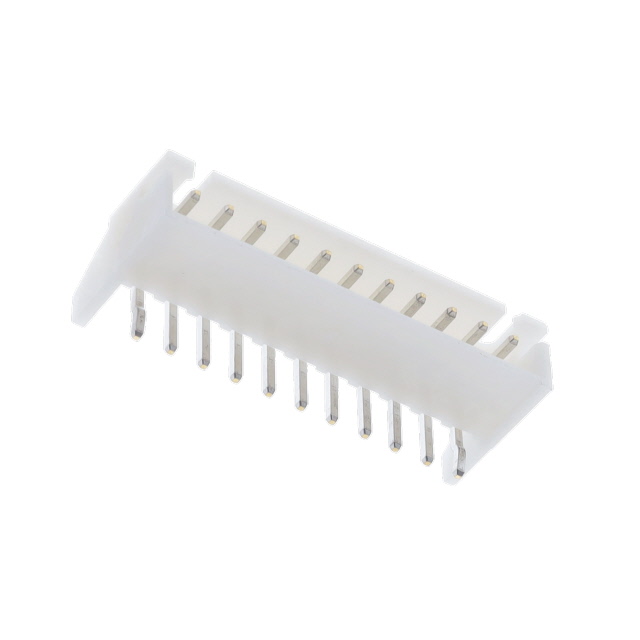

CONN HEADER R/A 11POS 2.5MM

Active

CONN HEADER R/A 11POS 2.5MM

Description

General part information

Connector Header Through Hole, Right Angle 11 position 0.098" (2.50mm)

Parameters and characteristics for this part

Specification	S11B-XH-A-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.134 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.24 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder
Voltage Rating	250 V

Part	Contact Length - Post	Contact Finish - Post	Contact Type	Contact Shape	Material Flammability Rating	Connector Type	Shrouding	Style	Contact Material	Current Rating	Number of Rows	Contact Finish - Mating	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Insulation Height	Pitch - Mating	Number of Positions	Mounting Type	Fastening Type	Insulation Material	Insulation Color	Number of Positions Loaded
JST Sales America Inc. S11B-XH-A	0.134 in	Tin	Male Pin	Square	UL94 V-0	Header	Shrouded - 4 Wall	Board Cable/Wire	Brass	3 A	1	Tin	Press-Fit Solder	85 °C	-25 °C	250 V	0.24 in	0.098 in	11	Right Angle Through Hole	Detent Lock	Nylon 6/6 Polyamide (PA66)	Natural	All
JST Sales America Inc. S11B-XH-A-1	0.134 in	Tin	Male Pin	Square	UL94 V-0	Header	Shrouded - 4 Wall	Board Cable/Wire	Brass	3 A	1	Tin	Press-Fit Solder	85 °C	-25 °C	250 V	0.24 in	0.098 in	11	Right Angle Through Hole	Detent Lock	Nylon 6/6 Polyamide (PA66)	Natural	All
