4291-9SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 9POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 9POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

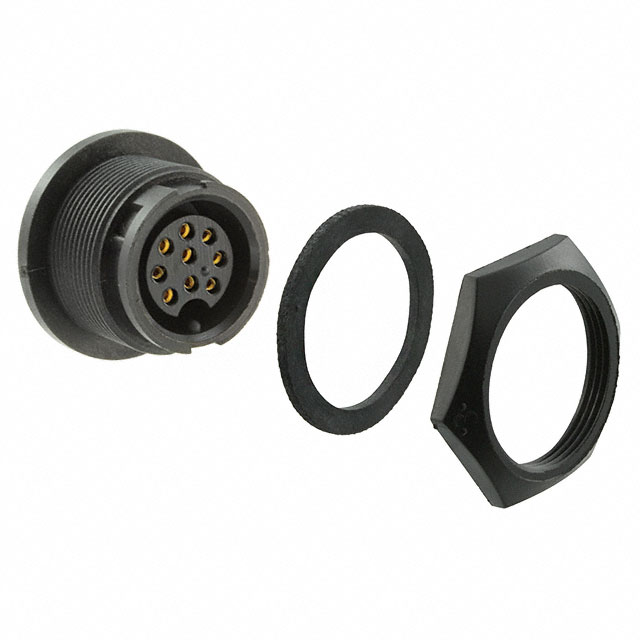

9 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Part	Mounting Type	Number of Positions	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Termination	Contact Finish - Mating	Current Rating (Amps)	Contact Material	Mounting Feature	Orientation	Fastening Type	Color	Voltage Rating	Ingress Protection
Conxall/Switchcraft 4291-9SG-3ES	Panel Mount, Through Hole	9	Plastic	-40 °C	115 °C	Receptacle, Female Sockets	Unshielded	Solder	Gold	5.6 A	Brass	Bulkhead - Front Side Nut	Keyed	Bayonet Lock	Black	600 V	Weathertight
Conxall/Switchcraft 4291-9SG-300	Panel Mount, Through Hole	9	Plastic	-40 °C	115 °C	Receptacle, Female Sockets	Unshielded	Solder	Gold	5.6 A	Brass	Bulkhead - Front Side Nut	Keyed	Bayonet Lock	Black	600 V	Weathertight
