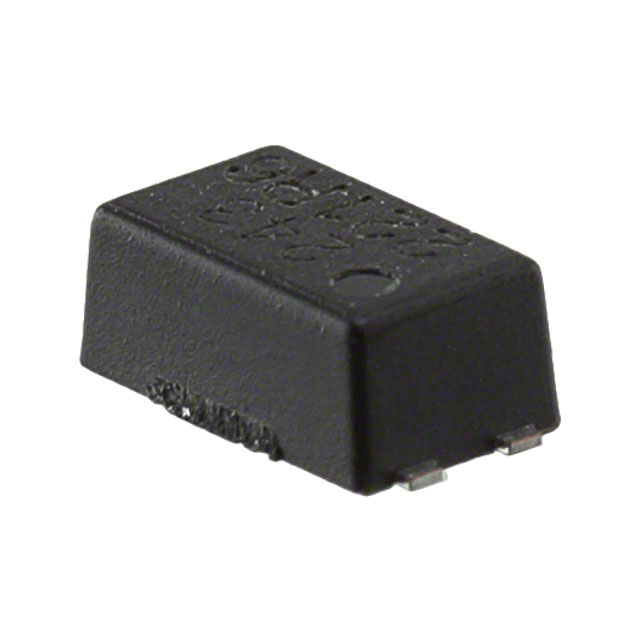

AQY222R2VY
ActivePanasonic Electric Works
SSR RELAY SPST-NO 400MA 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AQY222R2VY
ActivePanasonic Electric Works
SSR RELAY SPST-NO 400MA 0-60V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AQY222R2VY |
|---|---|
| Load Current | 400 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 1.25 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC (RF), AC |
| Package / Case | 4-SMD |
| Package / Case [custom] | 0.175 in |
| Package / Case [custom] | 4.45 mm |
| Supplier Device Package | 4-SSOP |
| Termination Style | SMD (SMT) Tab |
| Voltage - Input | 1.32 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.56 | |
| 10 | $ 7.09 | |||
| 25 | $ 6.30 | |||
| 50 | $ 5.99 | |||
| 100 | $ 5.67 | |||
| 250 | $ 5.04 | |||
| 500 | $ 4.73 | |||
| 1000 | $ 4.41 | |||
| Digi-Reel® | 1 | $ 7.56 | ||
| 10 | $ 7.09 | |||
| 25 | $ 6.30 | |||
| 50 | $ 5.99 | |||
| 100 | $ 5.67 | |||
| 250 | $ 5.04 | |||
| 500 | $ 4.73 | |||
| 1000 | $ 4.41 | |||
| Tape & Reel (TR) | 3500 | $ 4.33 | ||
Description
General part information
AQY222 Series
Solid State SPST-NO (1 Form A) 4-SMD (0.175", 4.45mm)
Documents
Technical documentation and resources
