MXL1076CT

Active

Analog Devices Inc./Maxim Integrated

IC REG MULT CONFIG ADJ 2A TO220

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC REG MULT CONFIG ADJ 2A TO220

Technical Specifications

Parameters and characteristics for this part

Specification	MXL1076CT

Current - Output	2 A
Frequency - Switching	100 kHz
Function	Step-Up, Step-Up/Step-Down, Step-Down
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable

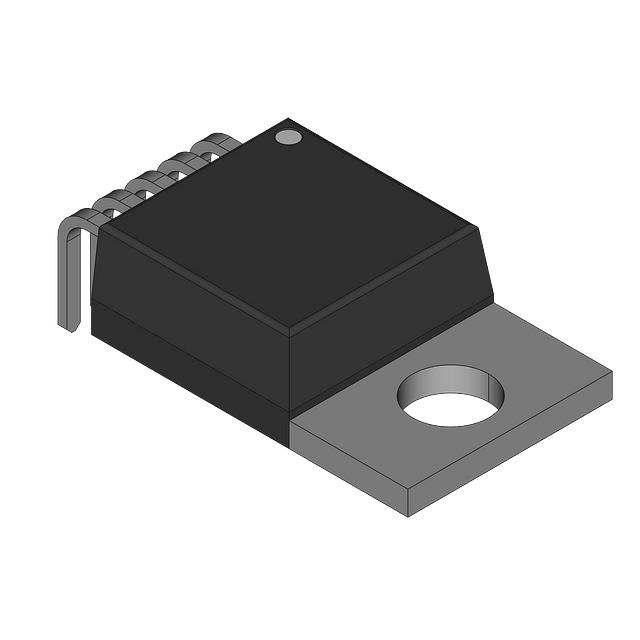

Package / Case	TO-220-5 Formed Leads
Supplier Device Package	TO-220-5
Synchronous Rectifier	False
Topology	Boost, Flyback, Buck
Voltage - Input (Min) [Min]	8 V
Voltage - Output (Max) [Max]	35 V
Voltage - Output (Min/Fixed)	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 3.76

IC REG MULT CONFIG ADJ 2A TO220

Part	Current - Output	Synchronous Rectifier	Supplier Device Package	Voltage - Output (Min/Fixed)	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Function	Output Configuration	Number of Outputs	Mounting Type	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Frequency - Switching	Topology	Package / Case
Analog Devices Inc./Maxim Integrated MXL1076CT	2 A		TO-220-5	2.5 V	Adjustable	70 °C	0 °C	Step-Down, Step-Up, Step-Up/Step-Down	Positive	1	Through Hole	35 V	8 V	100 kHz	Boost, Buck, Flyback	TO-220-5 Formed Leads

General part information

Buck, Boost, Flyback Switching Regulator IC Positive Adjustable 2.5V 1 Output 2A TO-220-5 Formed Leads

Technical documentation and resources

No documents available
