LXZ2-2790-5

Active

Lumileds

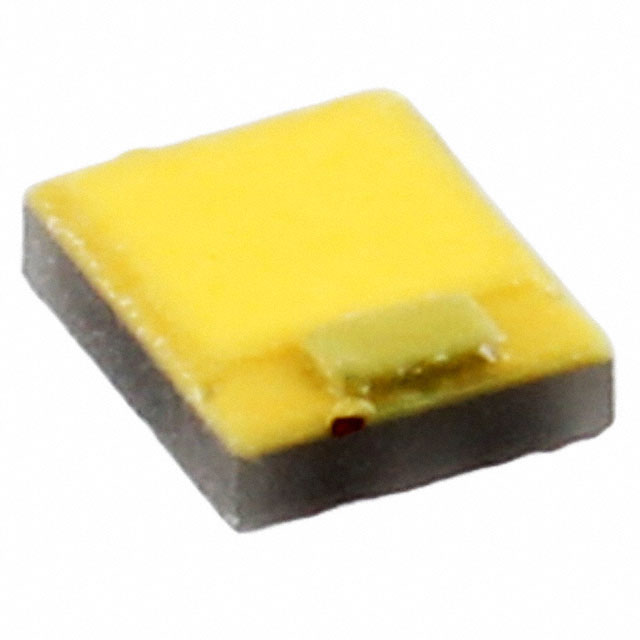

LED UNI-COLOR WHITE 160LM 2700K CHIP LED 3-PIN SMD T/R

Search across all available documentation for this part.

Active

Lumileds

LED UNI-COLOR WHITE 160LM 2700K CHIP LED 3-PIN SMD T/R

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Micro footprint enables close packaging

Undomed design allows precise optical control

1-, 3- and 5-step MacAdam ellipse: Freedom from Binning enabling color consistency

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LXZ2-2790-5	LXZ2 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
CRI (Color Rendering Index)	90	80 - 90
Current - Max [Max]	1.2 A	1.2 A
Flux @ 85°C, Current - Test	-	171 - 205 lm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Height - Seated (Max) [Max] [z]	0.78 mm	0.78 mm
Lumens/Watt @ Current - Test	82 lm/W	82 - 105 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	0806 (2016 Metric)	0806 (2016 Metric)
Size / Dimension [x]	0.08 "	0.08 "
Size / Dimension [x]	2.04 mm	2.04 mm
Size / Dimension [y]	1.64 mm	1.64 mm
Size / Dimension [y]	0.065 in	0.065 in
Supplier Device Package	SMD	SMD
Thermal Resistance of Package [diameter]	3 °C/W	3 °C/W
Viewing Angle	120 °	116 - 120 °
Voltage - Forward (Vf) (Typ)	2.8 V	2.8 V

LED UNI-COLOR WHITE 185LM 2700K CHIP LED 3-PIN SMD T/R

Part	CCT (K)	Mounting Type	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 85°C, Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thermal Resistance of Package [diameter]	Current - Max [Max]	Supplier Device Package	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Package / Case
Lumileds LXZ2-2780-5	2700 K	Surface Mount	80	94 lm/W	0.031 "	0.78 mm	185 lm	0.08 "	2.04 mm	1.64 mm	0.065 in	3 °C/W	1.2 A	SMD	120 °	Warm, White	2.8 V	0806 (2016 Metric)
Lumileds LXZ2-3580-5		Surface Mount	80	105 lm/W	0.031 "	0.78 mm	205 lm	0.08 "	2.04 mm	1.64 mm	0.065 in	3 °C/W	1.2 A	SMD	120 °	Warm, White	2.8 V	0806 (2016 Metric)
Lumileds LXZ2-2790-5	2700 K	Surface Mount	90	82 lm/W	0.031 "	0.78 mm		0.08 "	2.04 mm	1.64 mm	0.065 in	3 °C/W	1.2 A	SMD	120 °	Warm, White	2.8 V	0806 (2016 Metric)
Lumileds LXZ2-2780-3	2700 K	Surface Mount	80	94 lm/W	0.031 "	0.78 mm	185 lm	0.08 "	2.04 mm	1.64 mm	0.065 in	3 °C/W	1.2 A	SMD	120 °	Warm, White	2.8 V	0806 (2016 Metric)
Lumileds LXZ2-3590-5		Surface Mount	90	87 lm/W	0.031 "	0.78 mm	171 lm	0.08 "	2.04 mm	1.64 mm	0.065 in	3 °C/W	1.2 A	SMD	116 °	Warm, White	2.8 V	0806 (2016 Metric)
