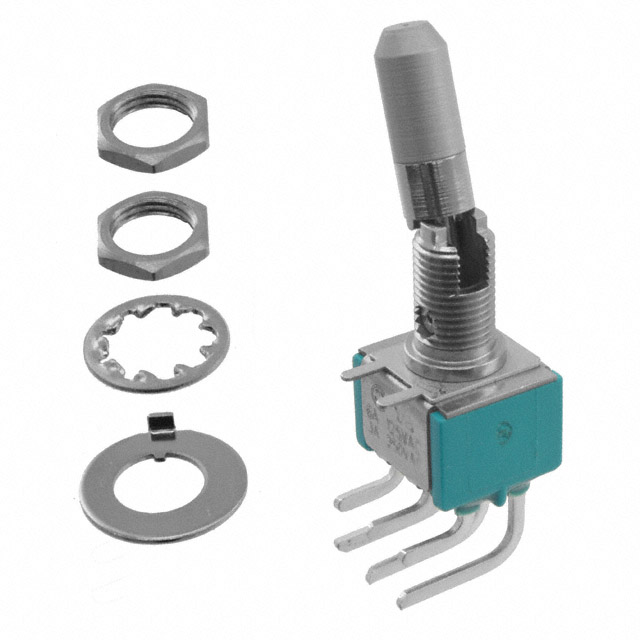

A223K12KAQ

Active

ELECTROSWITCH

SWITCH TOGGLE DPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A223K12KAQ

Active

ELECTROSWITCH

SWITCH TOGGLE DPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A223K12KAQ

Actuator Length [x]	15.47 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Locking Lever
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	6 A
Electrical Life	60000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Right Angle, Panel Mount
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

A223K12 Series

Part	Electrical Life	Features	Current Rating (Amps)	Termination Style	Circuit	Actuator Length [x]	Voltage Rating - AC	Actuator Material	Switch Function	Voltage Rating - DC	Illumination	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Mounting Type
ELECTROSWITCH A223K12KZQ	60000 Cycles	Epoxy Sealed Terminals	6 A	Solder Lug	DPDT	15.47 mm	125 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40
ELECTROSWITCH A223K12KV60G	60000 Cycles	Epoxy Sealed Terminals	6 A	PC Pin	DPDT	15.47 mm	125 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40
ELECTROSWITCH A223K12KAV2B	60000 Cycles	Epoxy Sealed Terminals	0.5 VA	PC Pin	DPDT	15.47 mm	28 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40	Panel Mount Right Angle Vertical
ELECTROSWITCH A223K12KZG-M8	60000 Cycles	Epoxy Sealed Terminals	6 A	Solder Lug	DPDT	15.47 mm	125 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40
ELECTROSWITCH A223K12KZG	60000 Cycles	Epoxy Sealed Terminals	6 A	Solder Lug	DPDT	15.47 mm	125 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40
ELECTROSWITCH A223K12KAQ	60000 Cycles	Epoxy Sealed Terminals	6 A	PC Pin	DPDT	15.47 mm	125 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40	Panel Mount Right Angle
ELECTROSWITCH A223K12KZB	60000 Cycles	Epoxy Sealed Terminals	0.5 VA	Solder Lug	DPDT	15.47 mm	28 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40
ELECTROSWITCH A223K12KAB	60000 Cycles	Epoxy Sealed Terminals	0.5 VA	PC Pin	DPDT	15.47 mm	28 V	Brass Chrome Plated	On-On	28 V	Non-Illuminated	Locking Lever	-30 ░C	90 °C	1/4-40	Panel Mount Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.51

Description

General part information

A223K12 Series

Toggle Switch DPDT Panel Mount, Right Angle
