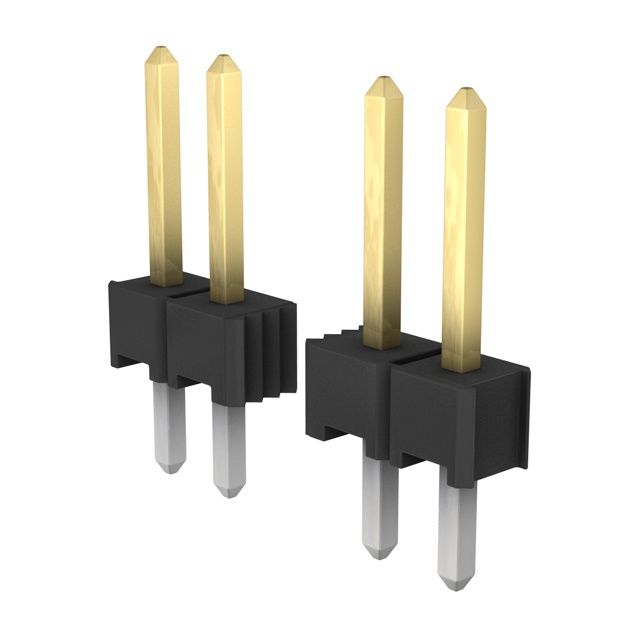

4-102972-0-25 - AMPMODU Mod II Breakaway Vert Gold xx Pins

4-102972-0-25

Active
TE Connectivity AMP Connectors

CONN HEADER VERT 25POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

4-102972-0-25 - AMPMODU Mod II Breakaway Vert Gold xx Pins

4-102972-0-25

Active
TE Connectivity AMP Connectors

CONN HEADER VERT 25POS 2.54MM

Deep-Dive with AI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification4-102972-0-25102972 Series
--
Connector TypeBreakaway, HeaderBreakaway, Header
Contact Finish - MatingGoldGold
Contact Finish - PostTin-LeadTin-Lead
Contact Finish Thickness - Mating15 µin15 µin
Contact Finish Thickness - Mating0.38 µm0.38 µm
Contact Finish Thickness - Post2.54 µm2.54 µm
Contact Finish Thickness - Post100 µin100 µin
Contact Length - Mating [x]0.318 "0.318 "
Contact Length - Mating [x]8.08 mm8.08 mm
Contact Length - Post [x]3.18 mm3.18 mm
Contact Length - Post [x]0.125 in0.125 in
Contact MaterialCopper AlloyCopper Alloy
Contact ShapeSquareSquare
Contact TypeMale PinMale Pin
Current Rating (Amps)3 A3 A
Fastening TypePush-PullPush-Pull
Insulation ColorBlackBlack
Insulation Height0.09 in0.09 in
Insulation Height2.29 mm2.29 mm
Insulation MaterialThermoplasticThermoplastic
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeThrough HoleThrough Hole
Number of Positions-1 - 40
Number of Positions-16
Number of Positions LoadedAllAll
Number of Rows11
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-65 ░C-65 ░C
Overall Contact Length13.55 mm13.55 mm
Overall Contact Length0.533 in0.533 in
Pitch - Mating0.1 in0.1 in
Pitch - Mating2.54 mm2.54 mm
ShroudingUnshroudedUnshrouded
StyleBoard to Board, CableBoard to Board, Cable
TerminationSolderSolder
