1355505-1

Active

TE Connectivity AMP Connectors

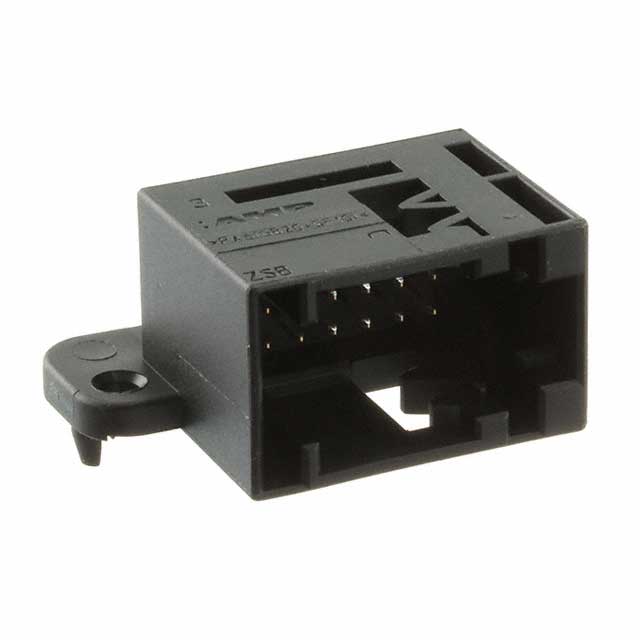

CONN HEADER R/A 12POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 12POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1355505-1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Mounting Flange, Board Lock
Insulation Color	Black
Insulation Height	15.9 mm
Insulation Height	0.626 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER R/A 12POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Material	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Style	Insulation Color	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Applications	Mounting Type	Number of Rows	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Shape	Features	Number of Positions Loaded	Termination
TE Connectivity AMP Connectors 1355505-1	0.1 in	2.54 mm	Male Pin	Polyamide (PA66), Nylon 6/6, Glass Filled	Shrouded - 4 Wall	85 °C	-40 °C	Tin	Board to Cable/Wire	Black	12	0.11 in	2.79 mm	Header	2.54 mm	0.1 in	Friction Lock	Automotive	Through Hole, Right Angle	2	Copper Alloy	78.7 µin	2 µm	15.9 mm	0.626 in	Square	Board Lock, Mounting Flange	All	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
