54-737-1

Active

NTE Electronics, Inc

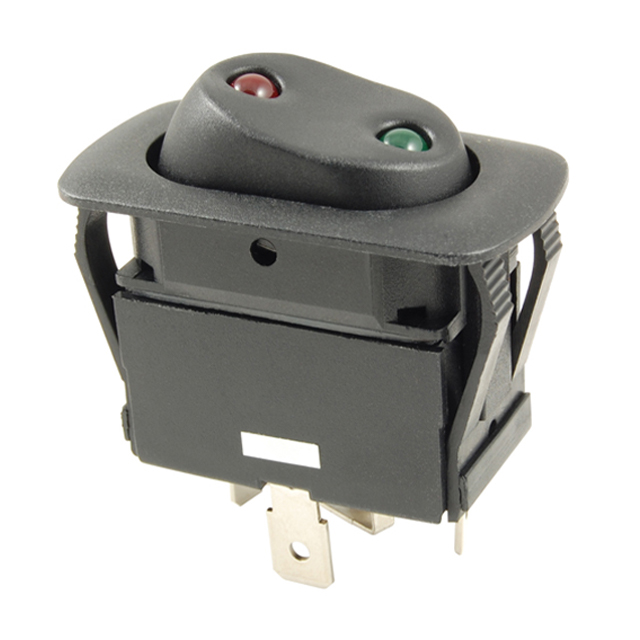

SWITCH ROCKER SPST 20A 12V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	54-737-1

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	12 VDC
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Illumination Type, Color	Switch Function	Circuit	Illumination Voltage (Nominal)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Voltage Rating - DC	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Actuator Type
NTE Electronics, Inc 54-737-1	Green/Red LED	On-Off-On	SPST	12 VDC	Panel Mount Snap-In	85 °C	-20 C	No Marking	12 V	Black	20 A	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available
