T4033014041-000
ActiveTE Connectivity AMP Connectors

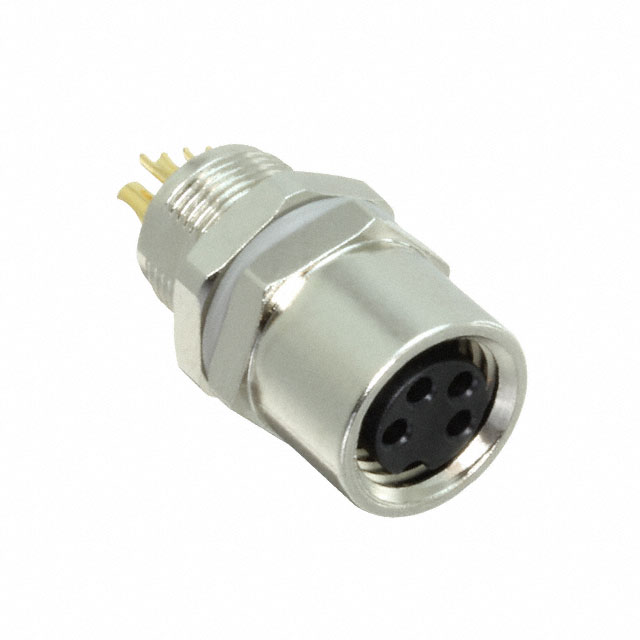

CONN RCPT FMALE 4POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
T4033014041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 4POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4033014041-000 |
|---|---|
| Applications | Telecommunications, Automation Control, Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M8-4 |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.68 | |
| 10 | $ 7.56 | |||
| 100 | $ 6.73 | |||
| 1000 | $ 5.61 | |||
T40330 Series
CONN RCPT FMALE 4POS SOLDER CUP
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Primary Material | Shell Material | Number of Positions | Color | Orientation | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Voltage Rating | Contact Finish - Mating | Shell Size - Insert | Current Rating (Amps) | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4033014041-000 | Automation Control, Industrial, Telecommunications | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Metal | Copper Alloy | 4 | Silver | A | Nickel | 3 µin | 0.076 µm | Receptacle, Female Sockets | 30 VDC | Gold | M8-4 | 3 A | Bulkhead - Rear Side Nut |
Description
General part information
T40330 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
