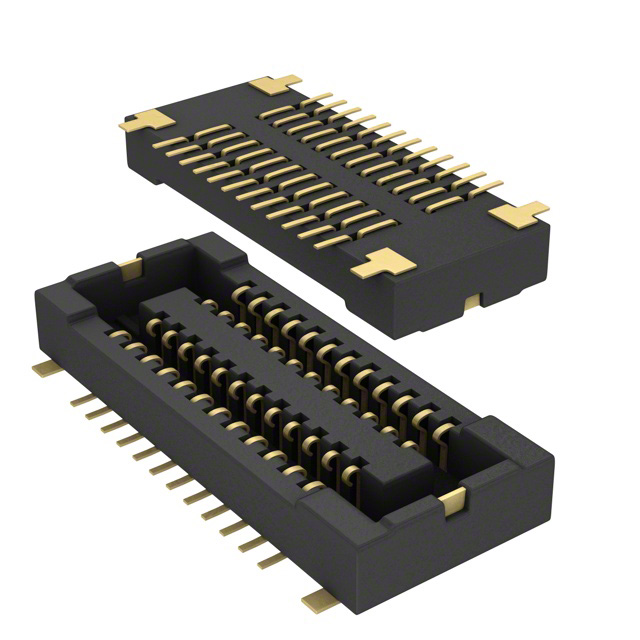

AXT524124 - F4S Socket Series 24POS

AXT524124

Active
Panasonic Electric Works

CONN SOCKET 24POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date CodesConnectors SMD-Technical Info
AXT524124 - F4S Socket Series 24POS

AXT524124

Active
Panasonic Electric Works

CONN SOCKET 24POS SMD GOLD

Deep-Dive with AI

DocumentsHow to Read Date CodesConnectors SMD-Technical Info

Technical Specifications

Parameters and characteristics for this part

SpecificationAXT524124
Connector TypeSocket, Outer Shroud Contacts
Contact FinishGold
FeaturesSolder Retention
Height Above Board0.97 mm
Height Above Board0.038 in
Mated Stacking Heights1 mm
Mounting TypeSurface Mount
Number of Positions24
Number of Rows2
Pitch [x]0.016 in
Pitch [x]0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.29
10$ 1.09
25$ 1.04
50$ 1.02
100$ 0.98
250$ 0.89
500$ 0.80
1000$ 0.71
Digi-Reel® 1$ 1.29
10$ 1.09
25$ 1.04
50$ 1.02
100$ 0.98
250$ 0.89
500$ 0.80
1000$ 0.71
Tape & Reel (TR) 3000$ 0.64
6000$ 0.62
9000$ 0.59
15000$ 0.58

Description

General part information

AXT524 Series

24 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
