84-5220.0020
ActiveEAO

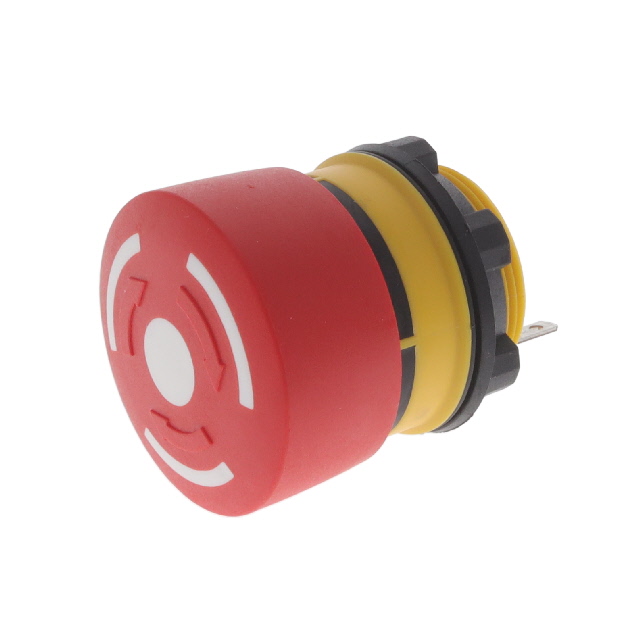

SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84-5220.0020
ActiveEAO
SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 84-5220.0020 |
|---|---|
| Circuit | SPST-NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP67, IP65 |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Reset Operation | Twist |
| Switch Function | On-Off |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 36.58 | |
| 5 | $ 31.94 | |||
| 10 | $ 30.12 | |||
| 25 | $ 27.87 | |||
| 50 | $ 26.28 | |||
| 100 | $ 24.77 | |||
84-5220 Series
SWITCH ESTOP TWIST RESET 5A 250V
| Part | Termination Style | Termination Style | Termination Style | Panel Cutout Dimensions [diameter] | Circuit | Reset Operation | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Mounting Type | Ingress Protection | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 84-5220.0020 | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | SPST-NC | Twist | 250 V | 5 A | On-Off | Panel Mount, Front | IP65, IP67 | 250 V | 65 °C | -25 °C |
Description
General part information
84-5220 Series
SWITCH ESTOP TWIST RESET 5A 250V
Documents
Technical documentation and resources
