Specification	SEAF8-10-05.0-S-06-3

Connector Type	High Density Array, FEMALE
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide
Height Above Board	0.18 in
Mated Stacking Height Options	10mm, 7mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	6
Pitch	0.031 in

SEAF8 Series

Board to Board & Mezzanine Connectors 0.80 mm SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Part	Connector Type	Pitch	Mounting Type	Features	Height Above Board	Mated Stacking Height Options	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness

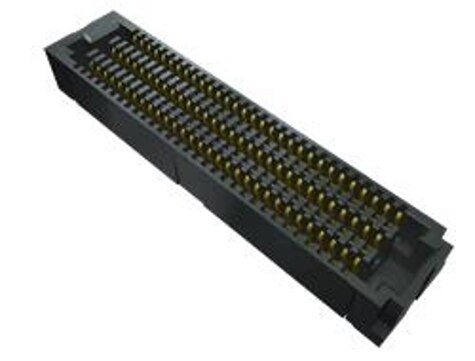

Samtec Inc. SEAF8-30-05.0-S-06-3	FEMALE High Density Array	0.031 in	Surface Mount	Board Guide	0.18 in	10mm 7mm	6	180	Gold	30 µin
Samtec Inc. SEAF8-30-05.0-STL-06-1	FEMALE High Density Array	0.031 in	Surface Mount		0.18 in	10mm 7mm	6	180	Gold	30 µin
Samtec Inc. SEAF8-20-05.0-S-04-2-K	FEMALE High Density Array	0.031 in	Surface Mount	Board Guide Pick and Place	0.18 in	10mm 7mm	4	80	Gold	30 µin
Samtec Inc. SEAF8-30-05.0-L-04-3	FEMALE High Density Array	0.031 in	Surface Mount	Board Guide	0.18 in	10mm 7mm	4	120	Gold	10 Ąin
Samtec Inc. SEAF8-10-05.0-S-06-3	FEMALE High Density Array	0.031 in	Surface Mount	Board Guide	0.18 in	10mm 7mm	6	60	Gold	30 µin

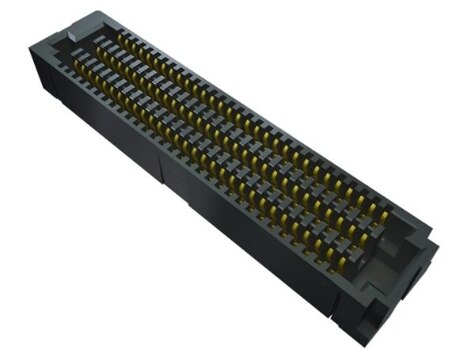

Samtec Inc. SEAF8-30-05.0-L-10-3	FEMALE High Density Array	0.031 in	Surface Mount	Board Guide	0.18 in	10mm 7mm	10	300	Gold	10 Ąin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
