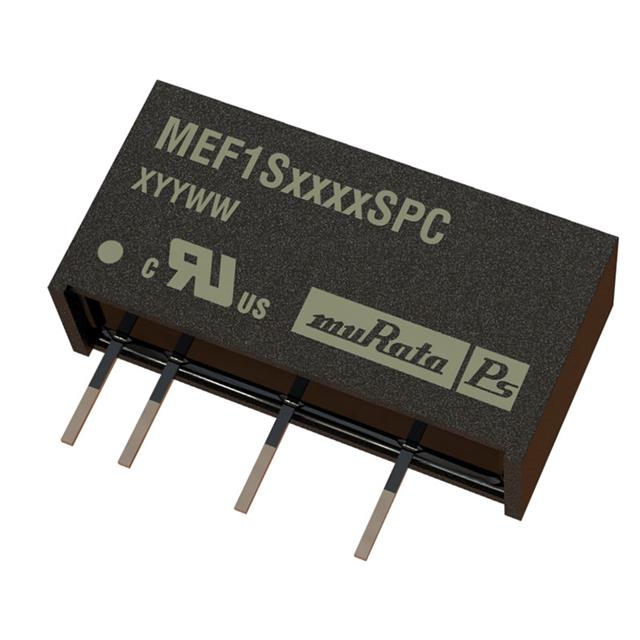

MEF1S0305SPC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 3.135V - 3.465V Input

Technical documentation and resources

Part	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Features	Type	Package / Case	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Efficiency	Mounting Type
Murata Power Solutions Inc. MEF1S0305SPC	1	3.135 V	ITE (Commercial)	SCP	Isolated Module	7-SIP Module, 4 Leads	5 V	1000 V	85 °C	-40 °C	3.465 V	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	200 mA	71 %	Through Hole
Murata Power Solutions Inc. MEF1S0305SP3C	1	3.135 V	ITE (Commercial)	SCP	Isolated Module	7-SIP Module, 4 Leads	5 V	3000 V	85 °C	-40 °C	3.465 V	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	200 mA	71 %	Through Hole
