PTN0.75RD250
ActiveTechflex

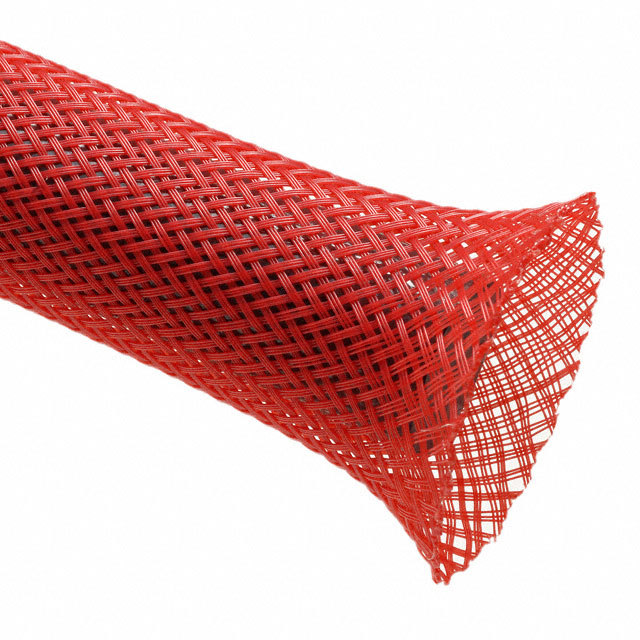

EXPAND SLEEVING 3/4" X 250' RED
Deep-Dive with AI
Search across all available documentation for this part.
PTN0.75RD250
ActiveTechflex
EXPAND SLEEVING 3/4" X 250' RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTN0.75RD250 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Red |
| Diameter - Inside, Expanded [diameter] | 31.75 mm |
| Diameter - Inside, Expanded [diameter] | 1.25 in |
| Diameter - Inside, Non-Expanded [diameter] | 19.05 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.75 in |
| Environment Protection | UV Resistant |
| Features | Clean Cut, Chemical Resistant, Solvent Resistant |
| Heat Protection | Heat Resistant |
| Length [x] | 76.2 m |
| Length [x] | 250 ft |
| Liquid Protection | Gasoline Resistant |
| Material | Polyethylene Terephthalate (PET), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness [custom] | 0.025 in |
| Wall Thickness [custom] | 0.64 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 106.46 | |
| 2 | $ 97.92 | |||
| 3 | $ 93.24 | |||
| 5 | $ 87.66 | |||
| 7 | $ 84.17 | |||
| 10 | $ 80.62 | |||
| 25 | $ 72.18 | |||
| 50 | $ 66.39 | |||
| 100 | $ 61.07 | |||
Description
General part information
PTN0.75 Series
Sleeve X 250' (76.20m) Red
