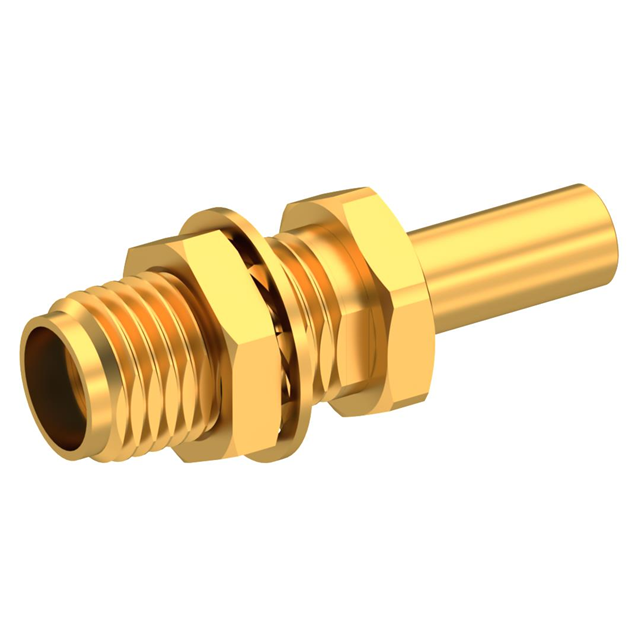

R125312120

Active

Radiall USA, Inc.

SMA / STRAIGHT BULKHEAD JACK FUL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT BULKHEAD JACK FUL

Technical Specifications

Parameters and characteristics for this part

Specification	R125312120

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Impedance	Mating Cycles	Frequency - Max [Max]	Voltage Rating	Connector Type	Shield Termination	Mounting Feature	Center Contact Plating	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Finish	Housing Color	Cable Group	Cable Group	Connector Style	Number of Ports	Contact Termination	Center Contact Material
Radiall USA, Inc. R125314120W	50 Ohms	500	12.4 GHz	335 V	Female Socket Jack	Crimp	Bulkhead - Front Side Nut	Gold	Stainless Steel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	141	RG-58	SMA	1	Crimp	Beryllium Copper
Radiall USA, Inc. R125312120	50 Ohms	500	12.4 GHz	500 V	Female Socket Jack	Crimp	Bulkhead - Front Side Nut	Gold	Stainless Steel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold		316 RG-174	SMA	1	Crimp	Beryllium Copper
Radiall USA, Inc. R125313121W	50 Ohms	500	12.4 GHz	250 VDC	Female Socket Jack	Crimp	Bulkhead - Front Side Nut	Gold	Stainless Steel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)		Silver		RG-316 Double Braid	SMA	1	Crimp	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
