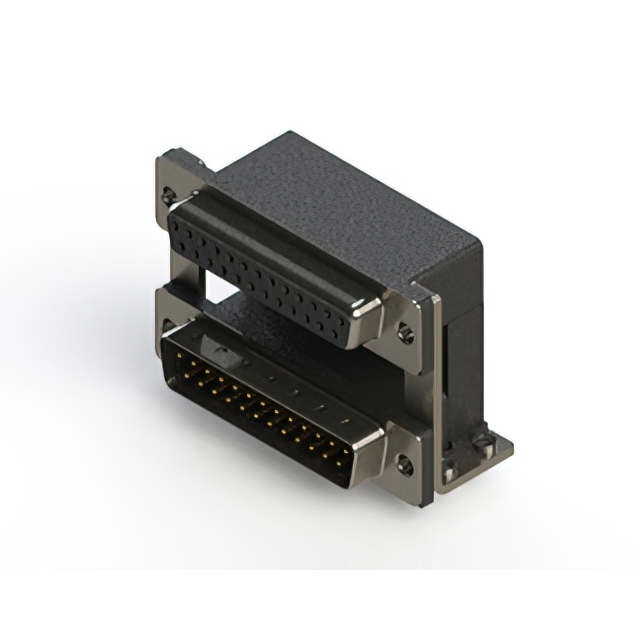

Specification	664-025-664-050

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Female Socket, Receptacle, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Grounding Indents, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

664-025 Series

...

Part	Current Rating (Per Contact)	Number of Positions	Number of Positions	Shell Material	Finish	Material Flammability Rating	Contact Finish	Flange Feature	Termination	Backset Spacing	Number of Rows	Connector Type	Features	Mounting Type	Shell Size, Connector Layout	Contact Finish Thickness	Connector Style	Contact Type	Contact Material	Dielectric Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 664-025-664-034	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Housing Shell (Unthreaded)	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	30 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
EDAC Inc. 664-025-664-059	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Female Screwlock (4-40) Mating Side	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	30 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
EDAC Inc. 664-025-664-002	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Housing Shell (4-40)	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Grounding Indents Shielded	Right Angle Through Hole	3 (DB B)	30 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
EDAC Inc. 664-025-664-055	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Housing Shell (4-40)	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	30 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
EDAC Inc. 664-025-664-03A	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Housing Shell (M3)	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	30 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
EDAC Inc. 664-025-664-040	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Housing Shell (Unthreaded)	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	30 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
EDAC Inc. 664-025-364-046	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Female Screwlock (4-40) Mating Side	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	15 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
EDAC Inc. 664-025-264-036	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Female Screwlock (4-40) Mating Side	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	0	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-025-264-009	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Female Screwlock (4-40) Mating Side	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Grounding Indents Shielded	Right Angle Through Hole	3 (DB B)	0	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-025-664-04C	3 A	25	25	Steel	Nickel Plated	UL94 V-0	Gold	Housing Shell (M3)	Solder	0.318 in	2	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Right Angle Through Hole	3 (DB B)	30 µin	D-Sub - Stacked	Signal	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 °C	85 °C
