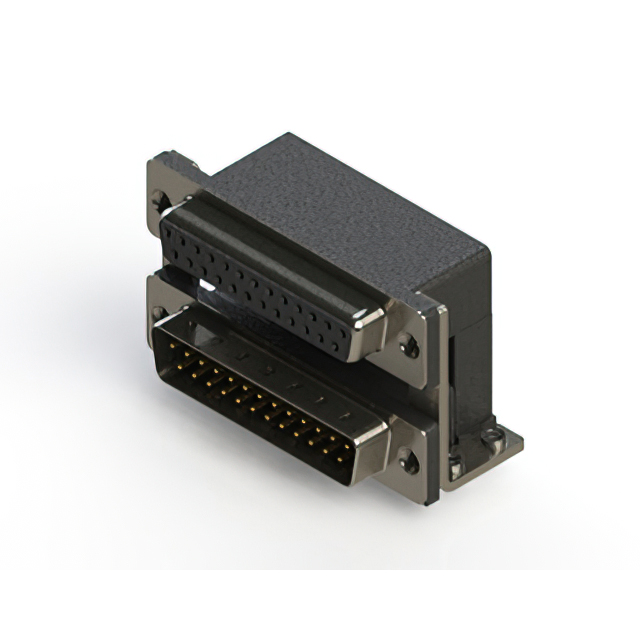

664-025-664-055
ActiveEDAC Inc.
664 SERIES RIGHT ANGLE DUAL D-SU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
664-025-664-055
ActiveEDAC Inc.
664 SERIES RIGHT ANGLE DUAL D-SU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 664-025-664-055 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins, Receptacle, Female Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass, Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) |
| Termination | Solder |
664-025 Series
| Part | Number of Rows | Flange Feature | Contact Finish | Material Flammability Rating | Mounting Type | Contact Type | Connector Style | Backset Spacing | Backset Spacing | Shell Material, Finish | Dielectric Material | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout | Features | Color | Contact Material | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Female Screwlock (4-40) Mating Side | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | 0.76 Ám | 30 Áin | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Grounding Indents Mounting Brackets Shielded | Black | Brass Phosphor Bronze | 3 A | |
EDAC Inc. | 2 | Housing/Shell (4-40) | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | 0.76 Ám | 30 Áin | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Grounding Indents Shielded | Black | Brass Phosphor Bronze | 3 A | |
EDAC Inc. | 2 | Housing/Shell (4-40) | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | 0.76 Ám | 30 Áin | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Grounding Indents Mounting Brackets Shielded | Black | Brass Phosphor Bronze | 3 A | |
EDAC Inc. | 2 | Female Screwlock (4-40) Mating Side | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | 0.38 µm | 15 µin | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Brass Phosphor Bronze | 3 A | |
EDAC Inc. | 2 | Female Screwlock (4-40) Mating Side | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Brass Phosphor Bronze | 3 A | Flash | ||
EDAC Inc. | 2 | Female Screwlock (4-40) Mating Side | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Grounding Indents Shielded | Black | Brass Phosphor Bronze | 3 A | Flash | ||
EDAC Inc. | 2 | Housing/Shell (M3) | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | 0.76 Ám | 30 Áin | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Brass Phosphor Bronze | 3 A | |
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Grounding Indents Shielded | Black | Brass Phosphor Bronze | 3 A | Flash | ||
EDAC Inc. | 2 | Female Screwlock (4-40) Mating Side | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | 0.76 Ám | 30 Áin | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Grounding Indents Shielded | Black | Brass Phosphor Bronze | 3 A | |
EDAC Inc. | 2 | Housing/Shell (4-40) | Gold | UL94 V-0 | Through Hole Right Angle | Signal | D-Sub - Stacked | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | Solder | 25 | 0.38 µm | 15 µin | Plug Male Pins Receptacle Female Socket | 85 °C | -55 °C | 3 (DB B) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Brass Phosphor Bronze | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 12.44 | |
Description
General part information
664-025 Series
25, 25 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector
