EN3P3M16PX
ActiveSwitchcraft Inc.

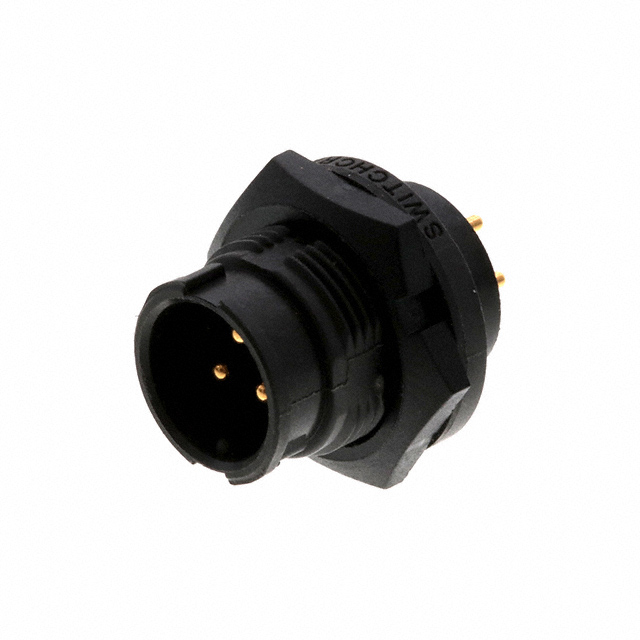

CONN RCPT MALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P3M16PX
ActiveSwitchcraft Inc.
CONN RCPT MALE 3POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P3M16PX | EN3P3M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Circuit Board, Solder, Crimp, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P3M Series
CONN RCPT MALE 3POS GOLD SOLDER
| Part | Primary Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Applications | Ingress Protection | Contact Material | Insert Material | Termination | Contact Finish - Mating | Shielding | Color | Current Rating (Amps) | Mounting Feature | Material Flammability Rating | Connector Type | Fastening Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P3MRAPCBW | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Circuit Board, Solder | Gold | Unshielded | Black | 5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P3MRAPCBN | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Circuit Board, Solder | Gold | Unshielded | Black | 5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P3M16KX | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | ||
Switchcraft Inc. EN3P3M16CX | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Crimp | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | |
Switchcraft Inc. EN3P3MCKX | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Crimp | Gold | Unshielded | Black | 7.5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | |
Switchcraft Inc. EN3P3MPX | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Solder | Gold | Unshielded | Black | 7.5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | Panel Mount, Through Hole |
Switchcraft Inc. EN3P3MX | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Gold | Unshielded | Black | 7.5 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | ||
Switchcraft Inc. EN3P3M16CKX | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Crimp | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | |
Switchcraft Inc. EN3P3M16PX | Plastic | 250 VAC | 65 °C | -40 °C | Keyed | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Copper Alloy | Elastomer | Solder | Gold | Unshielded | Black | 13 A | Bulkhead - Front Side Nut | UL94 V-0 | Male Pins, Receptacle | Bayonet Lock | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 6.99 | |
| 300 | $ 6.23 | |||
| 500 | $ 5.85 | |||
| 1000 | $ 5.18 | |||
Description
General part information
EN3P3M Series
3 Position Circular Connector Receptacle, Male Pins Solder
