MOVHE14V320Y

Active

Eaton - Electronics Division

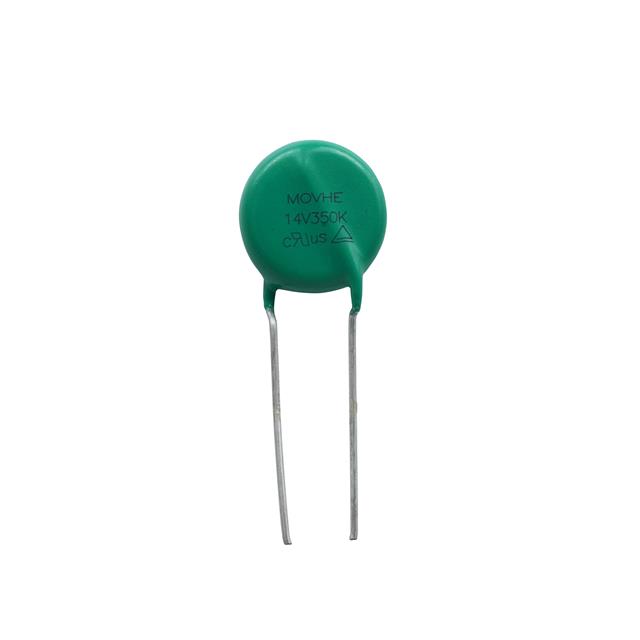

VARISTOR 320 VAC HE 14MM DISC

Search across all available documentation for this part.

Active

Eaton - Electronics Division

VARISTOR 320 VAC HE 14MM DISC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

510 V 6 kA Varistor 1 Circuit Through Hole Disc 14mm

Technical documentation and resources

Part	Varistor Voltage (Min) [Min]	Number of Circuits	Varistor Voltage (Max) [Max]	Capacitance @ Frequency	Energy	Mounting Type	Current - Surge	Operating Temperature [Min]	Operating Temperature [Max]	Varistor Voltage (Typ)	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Package / Case	Package / Case
Eaton - Electronics Division MOVHE14V320Y	459 V	1	561 V	390 pF	180 J	Through Hole	6 kA	-40 °C	125 °C	510 V	415 V	320 V	14 mm	Disc
Eaton - Electronics Division MOVHE14V230Y	324 V	1	396 V	560 pF		Through Hole	6 kA	-40 °C	125 °C	360 V	300 V	230 V	14 mm	Disc
Eaton - Electronics Division MOVHE14V190Y-AP	270 V	1	330 V	670 pF	108 J	Through Hole	6 kA	-40 °C	125 °C	300 V	250 V	190 V	14 mm	Disc
