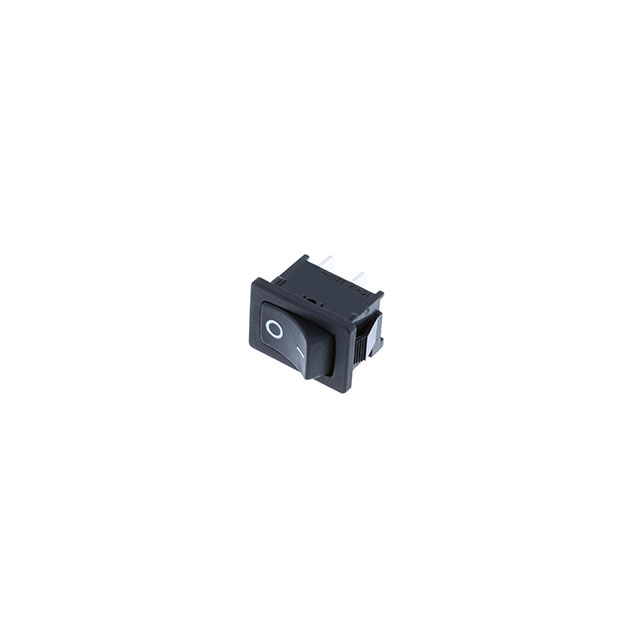

RF1-1B-AC-2-B-1

Active

Switch Components

VAC MINI, SPST OFF-(ON),PRINT

Search across all available documentation for this part.

Active

Switch Components

VAC MINI, SPST OFF-(ON),PRINT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VAC MINI, SPST OFF-(ON)

Part	Approval Agency	Ingress Protection	Color - Actuator/Cap	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Marking	Mounting Type	Termination Style	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)	Voltage Rating - AC	Mechanical Life	Voltage Rating - DC	Electrical Life
Switch Components RF1-1B-AC-2-B	CSA, cURus, ENEC	IP40	Black	SPST	85 °C	-20 C	Concave (Curved)	No Marking	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Off-Mom	13 mm	19.2 mm	16 A	125 V
Switch Components RF1-1B-AC-2-B-1	CSA, cURus, ENEC	IP40	Black	SPST	85 °C	-25 °C	Concave (Curved)	O -	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Off-Mom	13 mm	19.2 mm	16 A	125 V
Switch Components RF1-1B-DC-2-B	CSA, cURus, ENEC		Black	SPST-NO	85 °C	-25 °C	Concave (Curved)	No Marking	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Off-Mom	13 mm	19.2 mm	16 A, 16 A	125 V	10000 Steps	12 V	6000 Cycles
Switch Components RF1-1B-DC-2-B-1	CSA, cURus, ENEC		Black	SPST-NO	85 °C	-25 °C	Concave (Curved)	O -	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Off-Mom	13 mm	19.2 mm	16 A, 16 A	125 V	10000 Steps	12 V	6000 Cycles
