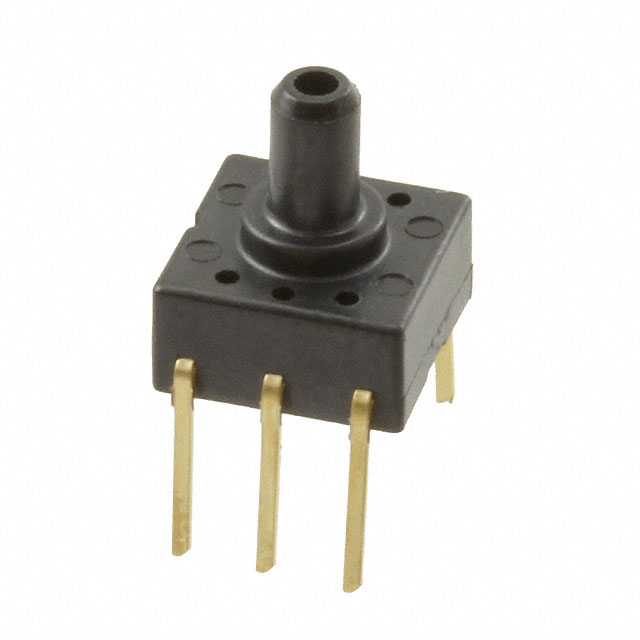

ADP41210
ObsoletePanasonic Industrial Automation Sales
SENSOR 4.97PSIG 0.1" 0.1V
Deep-Dive with AI
Search across all available documentation for this part.
ADP41210
ObsoletePanasonic Industrial Automation Sales
SENSOR 4.97PSIG 0.1" 0.1V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP41210 |
|---|---|
| Accuracy | 0.3 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 68.6 kPa |
| Maximum Pressure [Max] | 9.95 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 4.97 PSI |
| Operating Pressure | 34.3 kPa |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 6-DIP Module |
| Port Size | 2.5 mm |
| Port Size | Male, Tube |
| Port Size | 0.1 " |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ADP412 Series
Pressure Sensor 4.97PSI (34.3kPa) Vented Gauge Male - 0.1" (2.5mm) Tube 0 mV ~ 100 mV 6-DIP Module
