87220-8

Active

TE Connectivity AMP Connectors

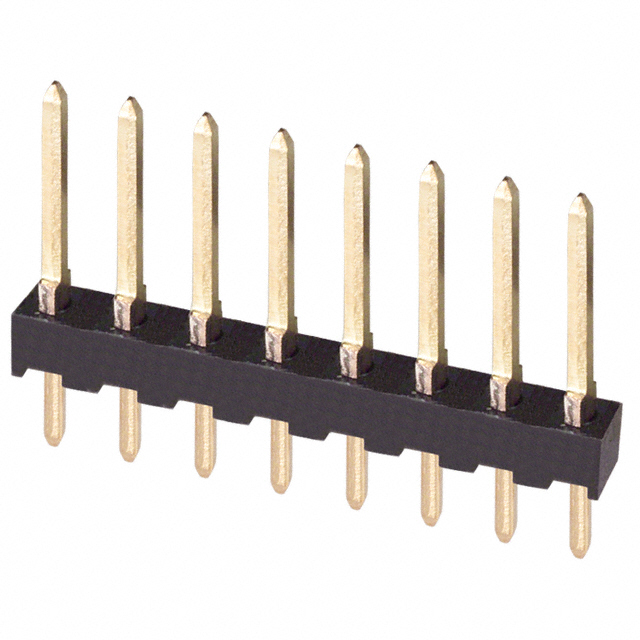

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87220-8

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.74
		10	$ 4.15
		200	$ 3.72
		600	$ 3.46
		1000	$ 3.09

Description

General part information

87220 Series

Connector Header Through Hole 8 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87220-8	87220 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	1 - 14
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87220 Series

CONN HEADER VERT 5POS 2.54MM

Part	Material Flammability Rating	Contact Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Fastening Type	Number of Positions Loaded	Contact Finish - Mating	Contact Shape	Number of Rows	Current Rating (Amps)	Contact Finish - Post	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Style	Shrouding	Insulation Material	Insulation Color	Connector Type	Number of Positions
TE Connectivity AMP Connectors 87220-5	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder	0.1 in	2.54 mm	Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header
TE Connectivity AMP Connectors 87220-1	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder			Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header	1
TE Connectivity AMP Connectors 1-87220-4	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder	0.1 in	2.54 mm	Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header	14
TE Connectivity AMP Connectors 87220-9	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder	0.1 in	2.54 mm	Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header	9
TE Connectivity AMP Connectors 87220-3	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder	0.1 in	2.54 mm	Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header
TE Connectivity AMP Connectors 1-87220-7	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder	0.1 in	2.54 mm	Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header
TE Connectivity AMP Connectors 87220-8	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder	0.1 in	2.54 mm	Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header	8
TE Connectivity AMP Connectors 87220-6	UL94 V-0	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	0.09 in	2.29 mm	Push-Pull	All	Gold	Square	1	3 A	Gold	Male Pin	-65 ░C	105 ░C	0.318 "	8.08 mm	Solder	0.1 in	2.54 mm	Flash	3.18 mm	0.125 in	13.55 mm	0.533 in	Board to Board, Cable	Unshrouded	Thermoplastic	Black	Header	6
