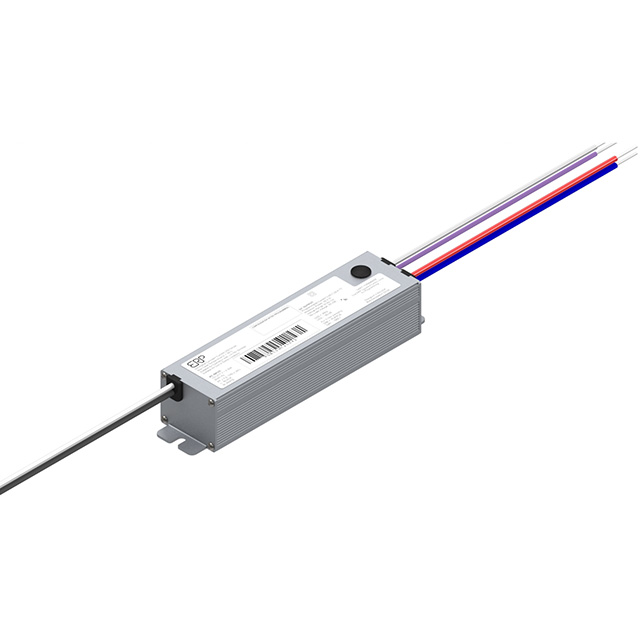

PSB50W-0850-56

Active

ERP Power, LLC

LED DRIVER

Search across all available documentation for this part.

Active

ERP Power, LLC

LED DRIVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

850mA 38 ~ 56V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED DRIVER

Part	Dimming	Type	Topology	Number of Outputs	Approval Agency	Features	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Ratings	Mounting Type	Current - Output (Max) [Max]	Termination Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature
ERP Power, LLC PSB50W-0850-56	Analog, ELV, TRIAC	Constant Current	AC DC Converter	1	CB, CE, cULus	OCP, OTP, SCP	48 W	277 VAC	120 VAC	IP20	Chassis Mount	850 mA	Wire Leads	3.93 in	99.8 mm	23.7 mm	1.02 "	26 mm	0.93 in	90 %	38 V	56 V
ERP Power, LLC PSB50W-1400-34-S	Analog, ELV, TRIAC	Constant Current	AC DC Converter	1	CB, CE, cULus, FCC		48 W	277 VAC	120 VAC	IP20	Chassis Mount	1.4 A	Wire Leads		3.88 "	0.86 "		1.03 "		90 %	23 V	34 V	26.2 mm	98.5 mm	21.9 mm	194 °F
ERP Power, LLC PSB50W-1200-42	Analog, ELV, TRIAC	Constant Current	AC DC Converter	1	CB, CE, cULus	OCP, OTP, SCP	50 W	277 VAC	120 VAC	IP20	Chassis Mount	1.2 A	Wire Leads	3.93 in	99.8 mm	23.7 mm	1.02 "	26 mm	0.93 in	90 %	28 V	42 V
ERP Power, LLC PSB50W-1400-34	Analog, ELV, TRIAC	Constant Current	AC DC Converter	1	CB, CE, cULus	OCP, OTP, SCP	48 W	277 VAC	120 VAC	IP20	Chassis Mount	1.4 A	Wire Leads	3.93 in	99.8 mm	23.7 mm	1.02 "	26 mm	0.93 in	90 %	23 V	34 V
ERP Power, LLC PSB50W-0550-85	Analog, ELV, TRIAC	Constant Current	AC DC Converter	1	CB, CE, cULus	OCP, OTP, SCP	47 W	277 VAC	120 VAC	IP20	Chassis Mount	550 mA	Wire Leads	3.93 in	99.8 mm	23.7 mm	1.02 "	26 mm	0.93 in	90 %	57 V	85 V
