STMPE812ABJR

Obsolete

STMicroelectronics

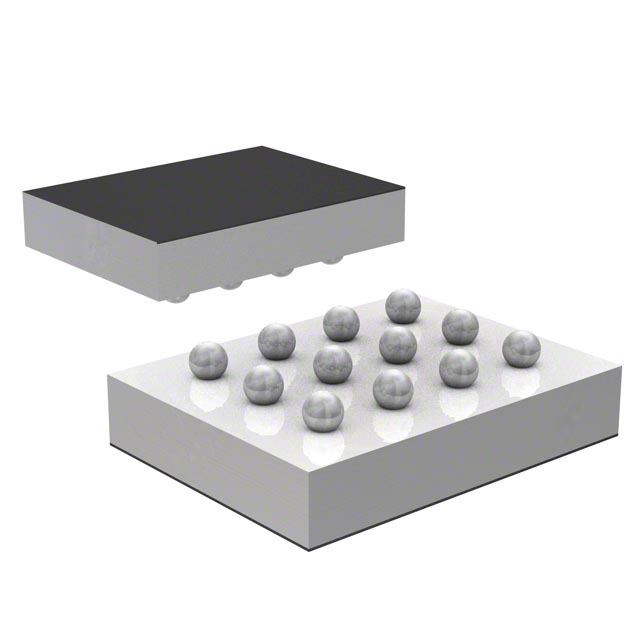

IC SCREEN CNTRL 12BIT 12CSP

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC SCREEN CNTRL 12BIT 12CSP

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Reference	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Resolution (Bits)	Package / Case	Interface	Touchscreen
STMicroelectronics STMPE812ABJR	Internal	Surface Mount	1.65 V	3.6 V	85 °C	-40 °C	12 b	12-WFBGA WLCSP	I2C	4 Wire Resistive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Touchscreen Controller 4 Wire Resistive 12 b I2C Interface 12-CSP (2.17x1.67)
