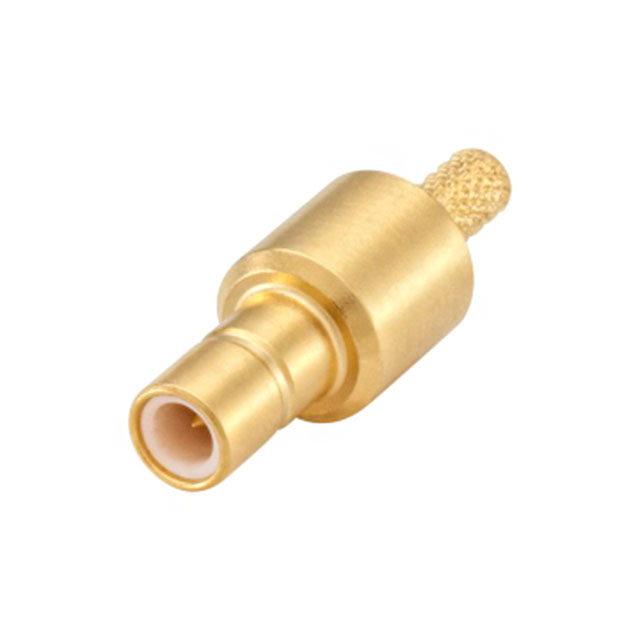

59S102-102L5

Active

Rosenberger

RF SMB CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF SMB CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	59S102-102L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Body Material	Mating Cycles	Shield Termination	Dielectric Material	Number of Ports	Connector Style	Includes	Contact Termination	Center Contact Plating	Connector Type	Fastening Type	Frequency - Max [Max]	Cable Group	Mounting Type	Center Contact Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Impedance	Body Finish
Rosenberger 59S102-102L5	Brass	500	Crimp	Polytetrafluoroethylene (PTFE)	1	SMB	1 Connector 1 Contact 1 Ferrule	Crimp	Gold	Male Pin Plug	Snap-On	4 GHz	188A 316 RG-174A	Free Hanging (In-Line)	Brass	Gold	155 °C	-55 °C	250 VDC	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
