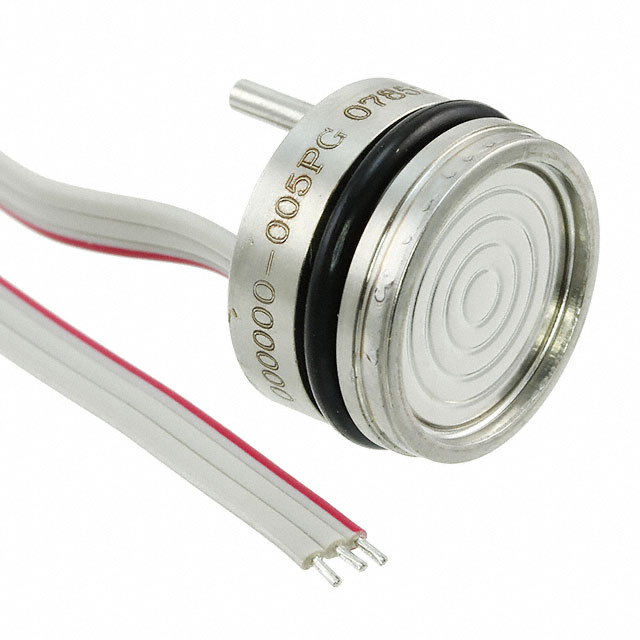

86A3R-000000-005PG

Active

TE Connectivity Measurement Specialties

SENSOR 5PSIG 4.5V

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 5PSIG 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	86A3R-000000-005PG

Accuracy	1 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	103.42 kPa
Maximum Pressure [Max]	15 PSI
Operating Pressure	34.47 kPa
Operating Pressure	5 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Module
Port Style	No Port
Pressure Type	Vented Gauge
Termination Style	Cable with Connector
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Termination Style	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Output Type	Features	Pressure Type	Port Style	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Maximum Pressure
TE Connectivity Measurement Specialties 86A3R-000000-150PG	Cable with Connector	1 %	85 °C	-20 C	0.5 V	4.5 V	Analog Voltage	Amplified Output Temperature Compensated	Vented Gauge	No Port	1034.21 kPa	150 PSI	4.75 V	5.25 V	Module	450 PSI	3102.64 kPa	Board Mount
TE Connectivity Measurement Specialties 86A3R-000000-005PG	Cable with Connector	1 %	85 °C	-20 C	0.5 V	4.5 V	Analog Voltage	Amplified Output Temperature Compensated	Vented Gauge	No Port	34.47 kPa	5 PSI	4.75 V	5.25 V	Module	15 PSI		Board Mount	103.42 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 245.11

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge 0.5 V ~ 4.5 V Module
