1376478-5
ActiveTE Connectivity AMP Connectors

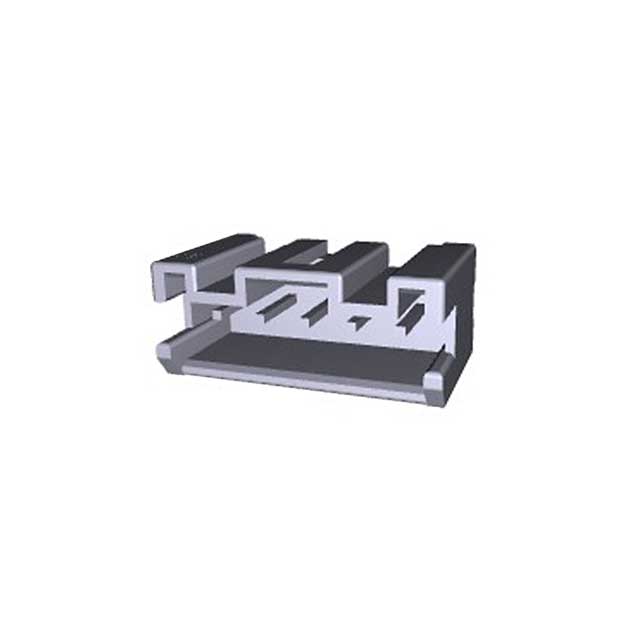

CONN HEADER VERT 5POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1376478-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 5POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1376478-5 | 1376478 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Guide | Board Guide |
| Insulation Color | Natural | Natural |
| Insulation Height [z] | 0.346 in | 0.346 in |
| Insulation Height [z] | 8.8 mm | 8.8 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | - | 2 - 7 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch - Mating | 2.5 mm | 2.5 mm |
| Pitch - Mating | 0.098 in | 0.098 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder |
| Voltage Rating | 50 V | 50 V |
1376478 Series
CONN HEADER VERT 2POS 2.5MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post [x] | Connector Type | Insulation Material | Mounting Type | Style | Voltage Rating | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Shape | Insulation Height [z] | Insulation Height [z] | Features | Fastening Type | Shrouding | Termination | Contact Material | Number of Positions | Contact Type | Current Rating (Amps) | Number of Rows | Applications | Contact Finish - Post | Number of Positions Loaded | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1376478-2 | -30 ░C | 105 ░C | 3.2 mm | 0.126 in | Header | Polyamide (PA66), Nylon 6/6, Glass Filled | Through Hole | Board to Cable/Wire | 50 V | Natural | 2.5 mm | 0.098 in | Square | 0.346 in | 8.8 mm | Board Guide | Latch Holder | Shrouded - 4 Wall | Kinked Pin, Solder | Brass | 2 | Male Pin | Varies by Wire Gauge | 1 | General Purpose | Tin | All | UL94 V-0 |
TE Connectivity AMP Connectors 1376478-5 | -30 ░C | 105 ░C | 3.2 mm | 0.126 in | Header | Polyamide (PA66), Nylon 6/6, Glass Filled | Through Hole | Board to Cable/Wire | 50 V | Natural | 2.5 mm | 0.098 in | Square | 0.346 in | 8.8 mm | Board Guide | Latch Holder | Shrouded - 4 Wall | Kinked Pin, Solder | Brass | Male Pin | Varies by Wire Gauge | 1 | General Purpose | Tin | All | UL94 V-0 | |
TE Connectivity AMP Connectors 1376478-6 | -30 ░C | 105 ░C | 3.2 mm | 0.126 in | Header | Polyamide (PA66), Nylon 6/6, Glass Filled | Through Hole | Board to Cable/Wire | 50 V | Natural | 2.5 mm | 0.098 in | Square | 0.346 in | 8.8 mm | Board Guide | Latch Holder | Shrouded - 4 Wall | Kinked Pin, Solder | Brass | 6 | Male Pin | Varies by Wire Gauge | 1 | General Purpose | Tin | All | UL94 V-0 |
TE Connectivity AMP Connectors 1376478-7 | -30 ░C | 105 ░C | 3.2 mm | 0.126 in | Header | Polyamide (PA66), Nylon 6/6, Glass Filled | Through Hole | Board to Cable/Wire | 50 V | Natural | 2.5 mm | 0.098 in | Square | 0.346 in | 8.8 mm | Board Guide | Latch Holder | Shrouded - 4 Wall | Kinked Pin, Solder | Brass | 7 | Male Pin | Varies by Wire Gauge | 1 | General Purpose | Tin | All | UL94 V-0 |
TE Connectivity AMP Connectors 1376478-4 | -30 ░C | 105 ░C | 3.2 mm | 0.126 in | Header | Polyamide (PA66), Nylon 6/6, Glass Filled | Through Hole | Board to Cable/Wire | 50 V | Natural | 2.5 mm | 0.098 in | Square | 0.346 in | 8.8 mm | Board Guide | Latch Holder | Shrouded - 4 Wall | Kinked Pin, Solder | Brass | 4 | Male Pin | Varies by Wire Gauge | 1 | General Purpose | Tin | All | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.11 | |
| 10 | $ 1.04 | |||
| 300 | $ 0.87 | |||
| 600 | $ 0.79 | |||
| 1200 | $ 0.71 | |||
| 5100 | $ 0.64 | |||
| 10200 | $ 0.60 | |||
Description
General part information
1376478 Series
Connector Header Through Hole 5 position 0.098" (2.50mm)
