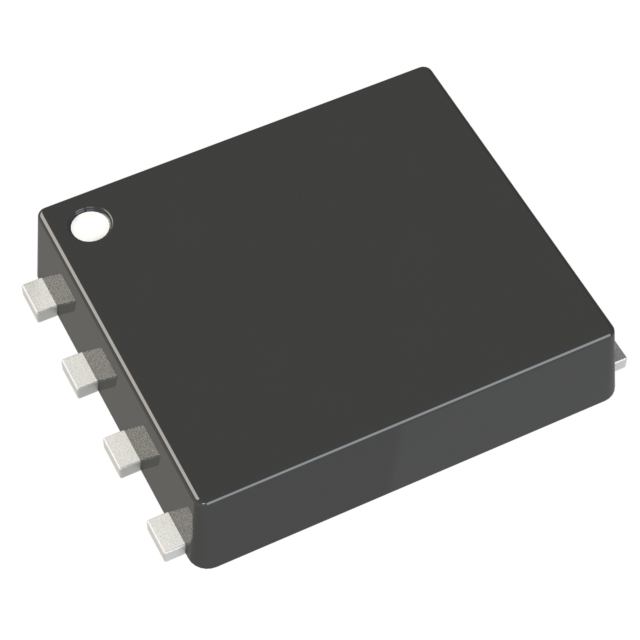

S-89110BPH-H4A-TFU

Active

ABLIC Inc.

IC CMOS 1 CIRCUIT SNT8A

Search across all available documentation for this part.

Active

ABLIC Inc.

IC CMOS 1 CIRCUIT SNT8A

Technical Specifications

Parameters and characteristics commom to parts in this series

IC CMOS 1 CIRCUIT SNT8A

Part	Current - Supply	Voltage - Supply Span (Max) [Max]	Current - Input Bias	Supplier Device Package	Amplifier Type	Voltage - Input Offset	Mounting Type	Slew Rate	Gain Bandwidth Product	Number of Circuits	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]
ABLIC Inc. S-89110BPH-H4A-TFU	50 µA	5.5 V	1 pA	SNT-8A	CMOS	3 mV	Surface Mount	0.07 V/µs	180 kHz	1	1.8 V	13 mA	85 °C	-40 °C
ABLIC Inc. S-89110BFM-H4A-TFU	50 µA	5.5 V	1 pA	8-TMSOP	CMOS	3 mV	Surface Mount	0.07 V/µs	180 kHz	1	1.8 V	13 mA	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CMOS Amplifier 1 Circuit SNT-8A
