M7VXK-2506R

Active

D-SUB CABLE - MMU25K/MC26M/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MMU25K/MC26M/X

Technical Specifications

Parameters and characteristics commom to parts in this series

D-SUB CABLE - MMU09K/MC10M/X

Part	1st Connector	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Shielding	Length	Length	Color	2nd Connector
3M M7VXK-0910R	Plug, Male Pins	DB9	0.76 Ám	30 Áin	Gold	9	Unshielded	10 ft	3.05 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-0910J	Plug, Male Pins	DB9	0.76 Ám	30 Áin	Gold	9	Unshielded	10 ft	3.05 m		Individual Wire Leads
3M M7VXK-3706J	Plug, Male Pins	DB37	0.76 Ám	30 Áin	Gold	37	Unshielded	6 ft	1.83 m		Individual Wire Leads
3M M7VXK-1506R	Plug, Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	6 ft	1.83 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-2506R	Plug, Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	6 ft	1.83 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-1506J	Plug, Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	6 ft	1.83 m		Individual Wire Leads
3M M7VXK-3710R	Plug, Male Pins	DB37	0.76 Ám	30 Áin	Gold	37	Unshielded	10 ft	3.05 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-2510J	Plug, Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	10 ft	3.05 m		Individual Wire Leads
3M M7VXK-1510R	Plug, Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	10 ft	3.05 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-2506J	Plug, Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	6 ft	1.83 m		Individual Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

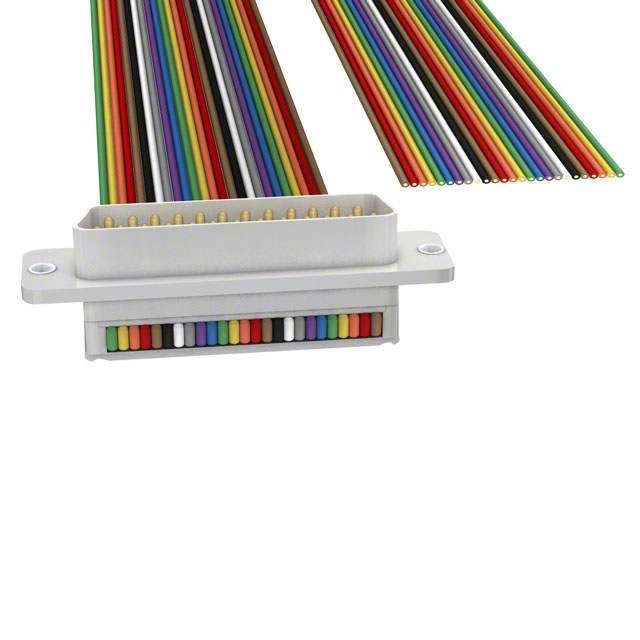

D-Sub Cable Assembly DB25 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources
