245103-02-72.00

Active

Amphenol RF

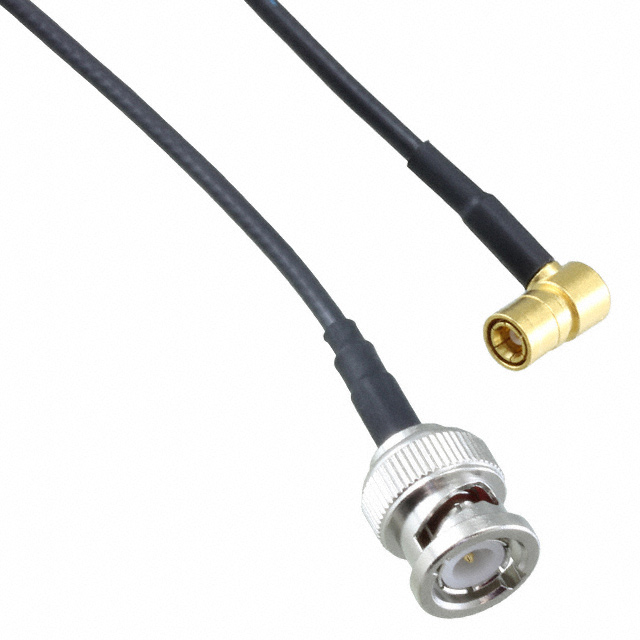

COAX CABLE BNC TO SMB 6'

Search across all available documentation for this part.

Active

Amphenol RF

COAX CABLE BNC TO SMB 6'

Technical Specifications

Parameters and characteristics for this part

Part	Cable Impedance	1st Connector	2nd Connector Mounting Type	2nd Contact Gender	Overall Impedance	Color	Length	Length	Cable Type	Features	1st Contact Gender	Style	1st Connector Mounting Type	2nd Connector	Frequency - Max [Max]	Length [x]	Length [x]	Length
Amphenol RF 245103-05-06.00	75 Ohms	BNC Plug	Free Hanging (In-Line)	Female	75 Ohms	Copper	152.4 mm	6 in	RG-179	Shielded	Male	BNC to SMB	Free Hanging (In-Line)	SMB Mini Plug Right Angle
Amphenol RF 245103-02-18.00	50 Ohms	BNC Plug	Free Hanging (In-Line)	Female	50 Ohms	Black			RG-174	Shielded	Male	BNC to SMB	Free Hanging (In-Line)	SMB Plug Right Angle	1 GHz	457.2 mm	457.2 mm
Amphenol RF 245103-05-48.00	75 Ohms	BNC Plug	Free Hanging (In-Line)	Female	75 Ohms	Copper	1200 mm	48 in	RG-179	Shielded	Male	BNC to SMB	Free Hanging (In-Line)	SMB Mini Plug Right Angle				4 ft
Amphenol RF 245103-05-36.00	75 Ohms	BNC Plug	Free Hanging (In-Line)	Female	75 Ohms	Copper	91.44 cm	36 in	RG-179	Shielded	Male	BNC to SMB	Free Hanging (In-Line)	SMB Mini Plug Right Angle
Amphenol RF 245103-05-12.00	75 Ohms	BNC Plug	Free Hanging (In-Line)	Female	75 Ohms	Copper	304.8 mm	12 "	RG-179	Shielded	Male	BNC to SMB	Free Hanging (In-Line)	SMB Mini Plug Right Angle
Amphenol RF 245103-02-36.00	50 Ohms	BNC Plug	Free Hanging (In-Line)	Female	50 Ohms	Black	91.44 cm	36 in	RG-174	Shielded	Male	BNC to SMB	Free Hanging (In-Line)	SMB Plug Right Angle	1 GHz
Amphenol RF 245103-02-72.00	50 Ohms	BNC Plug	Free Hanging (In-Line)	Female	50 Ohms	Black	1.8 m	72 in	RG-174	Shielded	Male	BNC to SMB	Free Hanging (In-Line)	SMB Plug Right Angle	1 GHz			6 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMB RG-174 72.0" (1.8m) 6.0'
