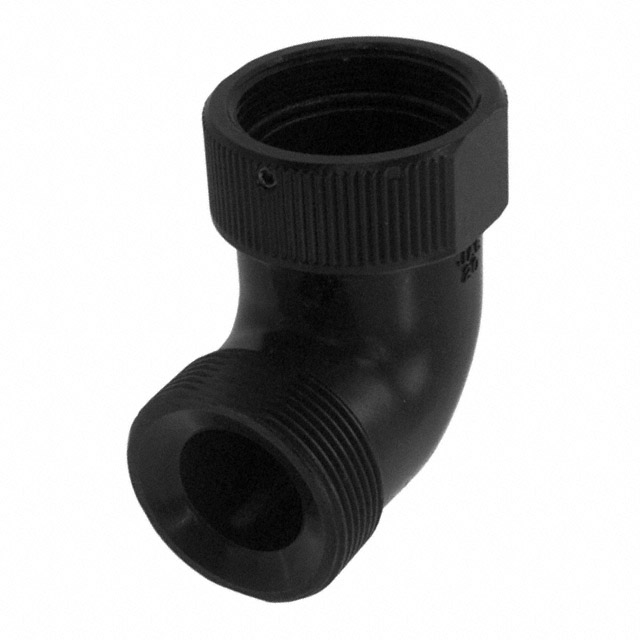

JL04-20EBL-R

Obsolete

JAE Electronics

CONN BACKSH SZ20 BLK 1 1/8-18

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN BACKSH SZ20 BLK 1 1/8-18

Technical Specifications

Parameters and characteristics for this part

Specification	JL04-20EBL-R

Cable Exit	90 °
Cable Opening [diameter]	17 mm
Cable Opening [diameter]	0.669 in
Color	Black
Diameter - Outside [diameter]	35.31 mm
Diameter - Outside [diameter]	1.39 in
For Use With/Related Products	JL04V Series Connectors
Ingress Protection	IP67 - Dust Tight, Waterproof
Shell Size - Insert	20
Thread Size	1 1/8-18 UNEF-2B
Type	Backshell

Part	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Shell Size - Insert	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Color	Features	Material	Type	Includes	For Use With/Related Products	Cable Exit
JAE Electronics JL04-20EBA	1 1/8-18 UNEF-2B	1.457 "	37 mm	Zinc	20	IP67 - Dust Tight Waterproof	17 mm	0.669 in	Black	Clamp Screws Gasket Retaining Ring	Aluminum Alloy	Backshell	1 Gasket 1 O-Ring 1 Retaining Ring 3 pc Backshell 5 Screws	JL04V Series Connectors	90 °
JAE Electronics JL04-20EBL-R	1 1/8-18 UNEF-2B	1.39 in	35.31 mm		20	IP67 - Dust Tight Waterproof	17 mm	0.669 in	Black			Backshell		JL04V Series Connectors	90 °
