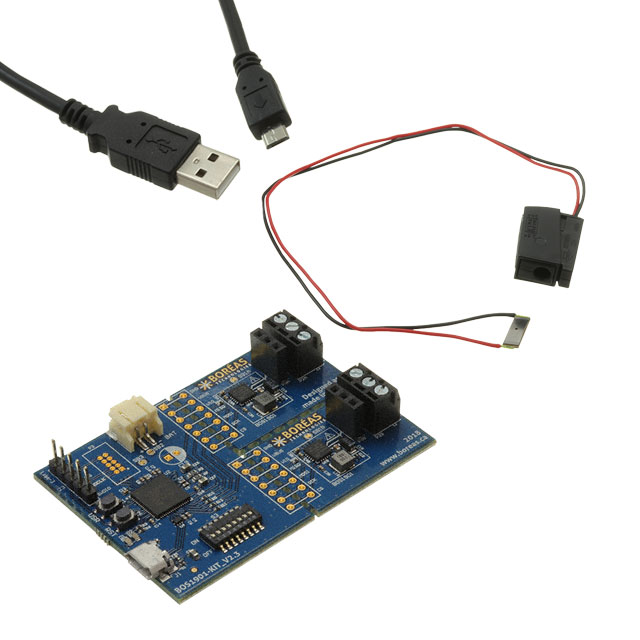

BOS1901-KIT-B

Obsolete

Boreas Technologies

BOS1901 DEVELOPMENT KIT

Search across all available documentation for this part.

Obsolete

Boreas Technologies

BOS1901 DEVELOPMENT KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BOS1901-KIT-B	BOS1901 Series

Applications	-	Portable Computers, Mobile Phones/Tablets, Keyboards and Mice
Contents	Accessories, Board(s), Cable(s)	Accessories, Board(s), Cable(s)
Current - Supply	-	710 µA
Function	Actuator Control	Actuator Control
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	20-WFQFN
Primary Attributes	Piezoelectric	Piezoelectric
Secondary Attributes	SPI Interface(s)	SPI Interface(s)
Supplied Contents	Board(s), Accessories, Cable(s)	Board(s), Accessories, Cable(s)
Supplier Device Package	-	20-QFN (4x4)
Type	Power Management	Power Management
Utilized IC / Part	BOS1901	BOS1901
Voltage - Supply	-	5.5 V
Voltage - Supply	-	3 V

PIEZO HAPTIC DRIVER QFN

Part	Applications	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Supplied Contents	Secondary Attributes	Primary Attributes	Function	Contents	Type
Boreas Technologies BOS1901CQT	Keyboards and Mice, Mobile Phones/Tablets, Portable Computers	20-WFQFN	5.5 V	3 V	710 µA	Surface Mount	20-QFN (4x4)	85 °C	-40 °C
Boreas Technologies BOS1901-KIT-B										BOS1901	Accessories, Board(s), Cable(s)	SPI Interface(s)	Piezoelectric	Actuator Control	Accessories, Board(s), Cable(s)	Power Management
Boreas Technologies BOS1901CQR	Keyboards and Mice, Mobile Phones/Tablets, Portable Computers	20-WFQFN	5.5 V	3 V	710 µA	Surface Mount	20-QFN (4x4)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BOS1901 - Actuator Control Power Management Evaluation Board

Technical documentation and resources
