2949994

Active

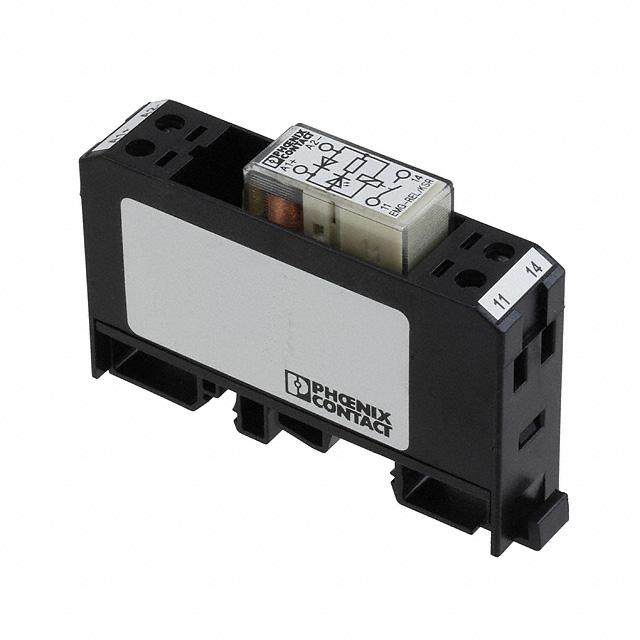

Phoenix Contact

POWER RLY, DC, SPST, 10A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Phoenix Contact

POWER RLY, DC, SPST, 10A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	2949994

Approval Agency	UL, EAC, cULus
Coil Resistance	857 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Features	Socket Included, Diode, Lighted Indicator
Load - Max Switching [Max]	2500 VA
Mounting Type	DIN Rail
Operate Time	13 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	250 VAC
Termination Style	Screw Terminal

POWER RLY, DC, SPST, 10A ROHS COMPLIANT: YES

Part	Load - Max Switching [Max]	Coil Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Operate Time	Coil Voltage	Mounting Type	Coil Resistance	Contact Form	Contact Rating (Current)	Features	Switching Voltage	Approval Agency	Relay Type	Release Time
Phoenix Contact 2949994	2500 VA	Non Latching	Screw Terminal	50 °C	-20 C	Silver Cadmium Oxide (AgCdO)	13 ms	24 VDC	DIN Rail	857 Ohms	SPST-NO (1 Form A)	10 A	Diode, Lighted Indicator, Socket Included	250 VAC	cULus, EAC, UL	General Purpose	15 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil DIN Rail
