L77DD50SU

Active

Amphenol ICC (Commercial Products)

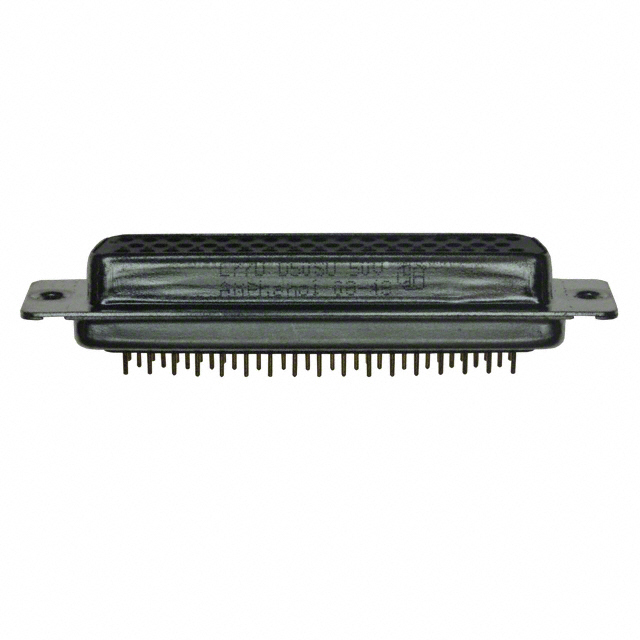

CONN D-SUB RCPT 50POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

L77DD50SU

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 50POS VERT SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77DD50SU

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	300 VDC

L77DD50 Series

Part	Color	Connector Style	Contact Finish	Current Rating (Amps)	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Termination	Shell Size, Connector Layout	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Connector Type	Mounting Type	Flange Feature	Contact Type	Number of Positions	Features	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L77DD50SOL2	Black	D-Sub	Gold	7.5 A	3	-55 °C	125 °C	Brass	Thermoplastic Glass Filled	Solder	5	300 VDC	8 çin	0.203 çm	UL94 V-0	Receptacle Female Sockets	Through Hole	Housing/Shell (Unthreaded)	Signal	50
Amphenol ICC (Commercial Products) L77DD50SA	Black	D-Sub	Gold	7.5 A	3	-55 °C	125 °C	Brass	Thermoplastic Glass Filled	Solder	5	300 VDC	8 çin	0.203 çm	UL94 V-0	Receptacle Female Sockets	Through Hole Right Angle	Housing/Shell (Unthreaded)	Signal	50	Mounting Brackets	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L77DD50SOL2RM8	Black	D-Sub	Gold	7.5 A	3	-55 °C	125 °C	Brass	Thermoplastic Glass Filled	Solder	5	300 VDC	8 çin	0.203 çm	UL94 V-0	Receptacle Female Sockets	Through Hole	Female Screwlock (4-40) Mating Side	Signal	50
Amphenol ICC (Commercial Products) L77DD50STA113	Black	D-Sub	Gold	7.5 A	3	-55 °C	125 °C	Brass	Thermoplastic Glass Filled	Solder	5	300 VDC	8 çin	0.203 çm	UL94 V-0	Receptacle Female Sockets	Through Hole	Housing/Shell (Unthreaded)	Signal	50
Amphenol ICC (Commercial Products) L77DD50SF179	Black	D-Sub	Gold	7.5 A	3	-55 °C	125 °C	Brass	Thermoplastic Glass Filled	Wire Wrap	5	300 VDC	8 çin	0.203 çm	UL94 V-0	Receptacle Female Sockets	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Signal	50
Amphenol ICC (Commercial Products) L77DD50SU	Black	D-Sub	Gold	7.5 A	3	-55 °C	125 °C	Brass	Thermoplastic Glass Filled	Solder	5	300 VDC	8 çin	0.203 çm	UL94 V-0	Receptacle Female Sockets	Through Hole	Housing/Shell (Unthreaded)	Signal	50
Amphenol ICC (Commercial Products) L77DD50SF179A	Black	D-Sub	Gold	7.5 A	3	-55 °C	125 °C	Brass	Thermoplastic Glass Filled	Wire Wrap	5	300 VDC	8 çin	0.203 çm	UL94 V-0	Receptacle Female Sockets	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Signal	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 25.67
		10	$ 19.80
		25	$ 17.93
		40	$ 17.06
		80	$ 15.88
		230	$ 14.29
		440	$ 13.42

Description

General part information

L77DD50 Series

50 Position D-Sub Receptacle, Female Sockets Connector
