AN5272

Obsolete

Panasonic Industrial Automation Sales

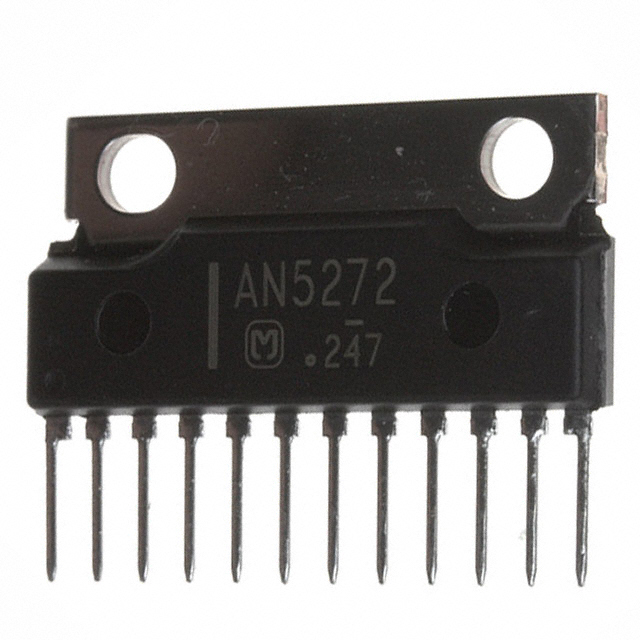

IC AMP CLASS AB STER 4.1W 12SIL

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STER 4.1W 12SIL

Technical Specifications

Parameters and characteristics for this part

Specification	AN5272

Features	Volume Control, Short-Circuit and Thermal Protection
Max Output Power x Channels @ Load	4.1 W
Max Output Power x Channels @ Load [custom]	2
Mounting Type	Through Hole
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-25 °C
Output Type	2-Channel (Stereo)
Package / Case	12-SIP + Tab
Supplier Device Package	12-SIL
Type	Class AB
Voltage - Supply [Max]	27.5 V
Voltage - Supply [Min]	12.2 V

Part	Output Type	Features	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Mounting Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Voltage - Supply [Max]	Voltage - Supply [Min]
Panasonic Industrial Automation Sales AN5272	2-Channel (Stereo)	Short-Circuit and Thermal Protection Volume Control	12-SIL	-25 °C	75 °C	Class AB	12-SIP + Tab	Through Hole	2	4.1 W	27.5 V	12.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 12-SIL
