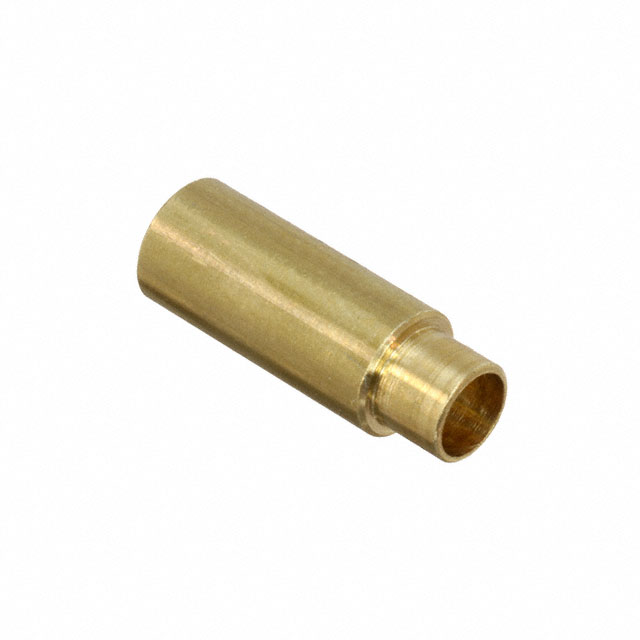

M1513-B-2545-B
ActiveRAF Electronic Hardware
4.5MM RD X 16MM X M2.5 THD
Deep-Dive with AI
DocumentsM1500-M1522 Cut Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M1513-B-2545-B |
|---|---|
| Between Board Height [z] | 16 mm |
| Between Board Height [z] | 0.63 in |
| Diameter - Inside [diameter] | 0.115 in |
| Diameter - Inside [diameter] | 2.92 mm |
| Diameter - Outside [diameter] | 4.5 mm |
| Diameter - Outside [diameter] | 0.177 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.736 in |
| Length - Overall [x] | 18.7 mm |
| Material | Brass |
| Screw, Thread Size | M2.5x0.45 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 83 | $ 2.24 | |
Description
General part information
M1513 Series
Round Standoff Threaded M2.5x0.45 Brass 0.630" (16.00mm)
