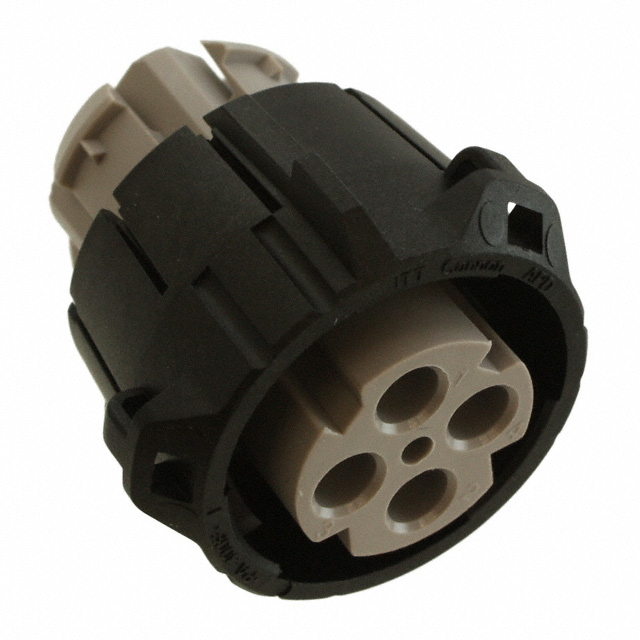

APD-2BS-K2

Active

ITT Cannon, LLC

CONN PLUG HSG FMALE 4POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APD-2BS-K2

Active

ITT Cannon, LLC

CONN PLUG HSG FMALE 4POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APD-2BS-K2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black, Gray
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	2
Shell Material	Polybutylene Terephthalate (PBT), Glass Filled
Shielding	Unshielded
Type	For Female Sockets

APD-2 Series

Part	Ingress Protection	Insert Material	Shell Material	Connector Type	Mounting Type	Fastening Type	Number of Positions	Contact Shape	Shielding	Orientation	Contact Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Type	Mounting Feature	Contact Size	Features
ITT Cannon, LLC APD-2BP19S	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Housing	Free Hanging (In-Line)	Bayonet Lock	19	Circular	Unshielded	2	Crimp	Contacts Not Included	125 °C	-40 °C	Black Gray	For Male Pins
ITT Cannon, LLC APD-2SS51	IP67 IP69K	Polybutylene Terephthalate (PBT) Glass Filled	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Housing		Bayonet Lock	51	Circular	Unshielded	2	Crimp	Contacts Not Included	125 °C	-40 °C	Yellow	For Female Sockets	Bulkhead
ITT Cannon, LLC APD-2AP-K2	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Housing		Bayonet Lock	4	Circular	Unshielded	2	Crimp	Contacts Not Included	125 °C	-40 °C	Gray	For Male Pins	Flange	2.5 mm
ITT Cannon, LLC APD-2BS19S	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Polybutylene Terephthalate (PBT) Glass Filled	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	19	Circular	Unshielded	2	Crimp	Contacts Not Included	125 °C	-40 °C	Black Gray	For Female Sockets			Coupling Nut
ITT Cannon, LLC APD-2SS51-S	IP67 IP69K	Polybutylene Terephthalate (PBT) Glass Filled	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Housing		Bayonet Lock	51	Circular	Unshielded	2	Crimp	Contacts Not Included	125 °C	-40 °C	Yellow	For Female Sockets	Bulkhead
ITT Cannon, LLC APD-2BS-K2	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Polybutylene Terephthalate (PBT) Glass Filled	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	4	Circular	Unshielded	2	Crimp	Contacts Not Included	125 °C	-40 °C	Black Gray	For Female Sockets		2.5 mm	Coupling Nut
ITT Cannon, LLC APD-2BP51-SN	IP67 IP69K	Polybutylene Terephthalate (PBT) Glass Filled	Polybutylene Terephthalate (PBT) Glass Filled	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	51	Circular	Unshielded	2	Crimp	Contacts Not Included	125 °C	-40 °C	Black Yellow	For Male Pins			Coupling Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.17
		10	$ 7.39
		25	$ 6.98
		50	$ 6.81
		100	$ 6.47
		300	$ 5.79
		500	$ 5.45
		1000	$ 4.77

Description

General part information

APD-2 Series

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
