PSA.1S.275.CTLC66
ActiveLEMO

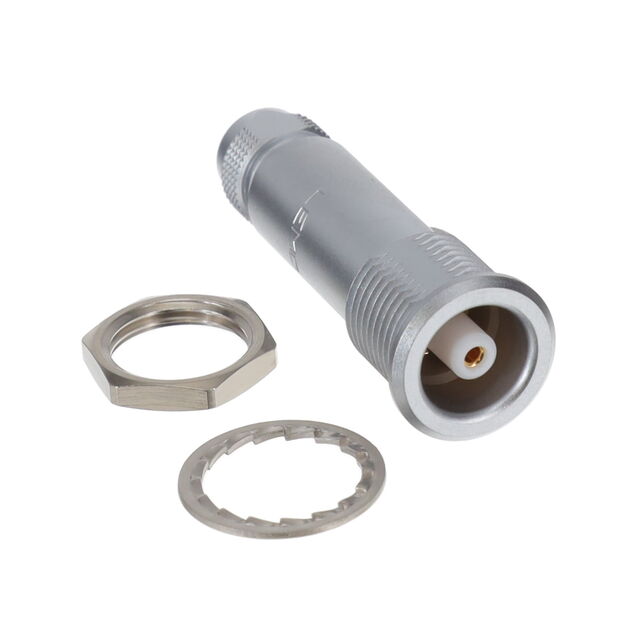

CONN COAX RCPT STR 75 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCoaxial, Triaxial, Multi Catalog
PSA.1S.275.CTLC66
ActiveLEMO
CONN COAX RCPT STR 75 OHM SOLDER
Deep-Dive with AI
DocumentsCoaxial, Triaxial, Multi Catalog
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PSA.1S.275.CTLC66 | PSA.1S Series |
|---|---|---|
| Backshell Material, Plating | - | Brass, Chrome |
| Body Finish | Chrome | Chrome |
| Body Material | Brass | Brass |
| Cable Group | 400, 223, 187A, 179B, RG-58C, 302, 59B | 400, 223, 187A, 179B, RG-58C, 302, 59B, 174A, 188A, 196A, 316B, 178B, RG-122, 174, Belden 9222, 178, RG-174 |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 0.126 - 0.224 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 0.165 - 0.244 in |
| Cable Opening | - | 3.2 - 5.7 mm |
| Cable Opening | - | 6.2 mm |
| Cable Opening | - | 0.232 - 5.7 in |
| Cable Opening | - | 5.9 - 6.5 mm |
| Cable Opening | - | 0.205 - 0.224 in |
| Center Contact Material | Beryllium Copper | Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Color | - | Silver |
| Connector Style | Coaxial | Coaxial, Triaxial |
| Connector Type | Receptacle, Female Socket | Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Insert, Female Socket |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Bronze, Brass |
| Contact Termination | Solder | Solder |
| Current Rating (Amps) | - | 4 - 25 A |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Backshell, Insert Only, Requires Shell |
| Housing Color | Silver | Silver |
| Impedance | 75 Ohms | 50 - 75 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Insert Material | - | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | - | UL94 V-0 |
| Mating Cycles | 1000 | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Free Hanging (In-Line), Panel Mount |
| Number of Ports | 1 | 1 |
| Number of Positions | - | 1 - 6 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | - | Keyed |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 120 - 902 |
| Shield Termination | Clamp | Clamp |
| Shielding | - | Shielded |
PSA.1S Series
CONN CIRC RCPT 4P GOLD SLDR CUP
| Part | Fastening Type | Material Flammability Rating | Connector Type | Shell Size - Insert | Shell Material | Ingress Protection | Insert Material | Shielding | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Number of Positions | Backshell Material, Plating | Contact Finish - Mating | Primary Material | Contact Material | Features | Mounting Feature | Shell Finish | Current Rating (Amps) | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Connector Style | Mating Cycles | Includes | Center Contact Material | Body Finish | Body Material | Center Contact Plating | Dielectric Material | Shield Termination | Housing Color | Contact Termination | Number of Ports | Impedance | Cable Group | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | UL94 V-0 | Female Sockets, Male Pins, Receptacle | 902 | Brass | IP50 | Polyetheretherketone (PEEK) | Shielded | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | Silver | Free Hanging (In-Line), Panel Mount | -55 °C | 250 °C | Keyed | 4 | Brass, Chrome | Gold | Metal | Brass, Bronze | Backshell | Bulkhead - Rear Side Nut | Chrome | ||||||||||||||||||||||||
Push-Pull | UL94 V-0 | Female Sockets, Male Pins, Receptacle | 304 | Brass | IP50 | Polyetheretherketone (PEEK) | Shielded | Silver | Free Hanging (In-Line), Panel Mount | -55 °C | 250 °C | Keyed | 4 | Brass, Chrome | Gold | Metal | Brass, Bronze | Backshell | Bulkhead - Rear Side Nut | Chrome | 10 A | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | ||||||||||||||||||||||
Push-Pull | UL94 V-0 | Male Pins, Receptacle | 405 | Brass | IP50 | Polytetrafluoroethylene (PTFE) | Shielded | Silver | Free Hanging (In-Line), Panel Mount | -55 °C | 250 °C | Keyed | 1 | Brass, Chrome | Gold | Metal | Brass | Backshell | Bulkhead - Rear Side Nut | Chrome | 4 A | ||||||||||||||||||||||||||
Push-Pull | UL94 V-0 | Receptacle, Female Sockets | 405 | Brass | IP50 | Polytetrafluoroethylene (PTFE) | Shielded | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | Silver | Free Hanging (In-Line), Panel Mount | -55 °C | 250 °C | Keyed | 1 | Brass, Chrome | Gold | Metal | Bronze | Backshell | Bulkhead - Rear Side Nut | Chrome | 8 A | |||||||||||||||||||||||
LEMO PSA.1S.405.ZTL41 | UL94 V-0 | Female Sockets, Insert | 405 | IP50 | Polytetrafluoroethylene (PTFE) | Shielded | -55 °C | 250 °C | Keyed | 1 | Gold | Bronze | Insert Only, Requires Shell | 8 A | |||||||||||||||||||||||||||||||||
Push-Pull | Female Socket, Receptacle | IP50 | -55 °C | 250 °C | Bulkhead - Rear Side Nut | Coaxial | 1000 | 1 Connector, 1 Lockwasher, 1 Nut | Beryllium Copper | Chrome | Brass | Gold | Polytetrafluoroethylene (PTFE) | Clamp | Silver | Solder | 1 | 75 Ohms | 179B, 187A, 223, 302, 400, 59B, RG-58C | ||||||||||||||||||||||||||||
LEMO PSA.1S.306.ZLL | UL94 V-0 | Female Sockets, Insert, Male Pins | 306 | IP50 | Polyetheretherketone (PEEK) | Shielded | -55 °C | 250 °C | Keyed | 6 | Gold | Brass, Bronze | Insert Only, Requires Shell | 7 A | |||||||||||||||||||||||||||||||||
Push-Pull | UL94 V-0 | Male Pins, Receptacle | 405 | Brass | IP50 | Polytetrafluoroethylene (PTFE) | Shielded | Silver | Free Hanging (In-Line), Panel Mount | -55 °C | 250 °C | Keyed | 1 | Brass, Chrome | Gold | Metal | Brass | Backshell | Bulkhead - Rear Side Nut | Chrome | 4 A | 0.224 in | 0.244 in | 5.7 mm | 6.2 mm | ||||||||||||||||||||||
LEMO PSA.1S.250.ZTL | Push-Pull | Female Socket, Receptacle | IP50 | -55 °C | 250 °C | Bulkhead - Rear Side Nut | Coaxial | 1000 | 1 Connector, 1 Lockwasher, 1 Nut | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | Clamp | Solder | 50 Ohms | 174, 174A, 178B, 188A, 196A, 316B, RG-122 | |||||||||||||||||||||||||||||||
Push-Pull | Female Socket, Receptacle | IP50 | -55 °C | 250 °C | Bulkhead - Rear Side Nut | Coaxial | 1000 | 1 Connector, 1 Lockwasher, 1 Nut | Beryllium Copper | Chrome | Brass | Gold | Polytetrafluoroethylene (PTFE) | Clamp | Silver | Solder | 1 | 50 Ohms | 174, 174A, 178B, 188A, 196A, 316B, RG-122 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.63 | |
| 10 | $ 29.45 | |||
| 25 | $ 28.18 | |||
| 50 | $ 27.27 | |||
| 100 | $ 26.36 | |||
| 250 | $ 24.91 | |||
Description
General part information
PSA.1S Series
Coaxial Connector Receptacle, Female Socket 75 Ohms Panel Mount Solder
Documents
Technical documentation and resources
