8A3022-Z

Obsolete

Nidec Components Corporation

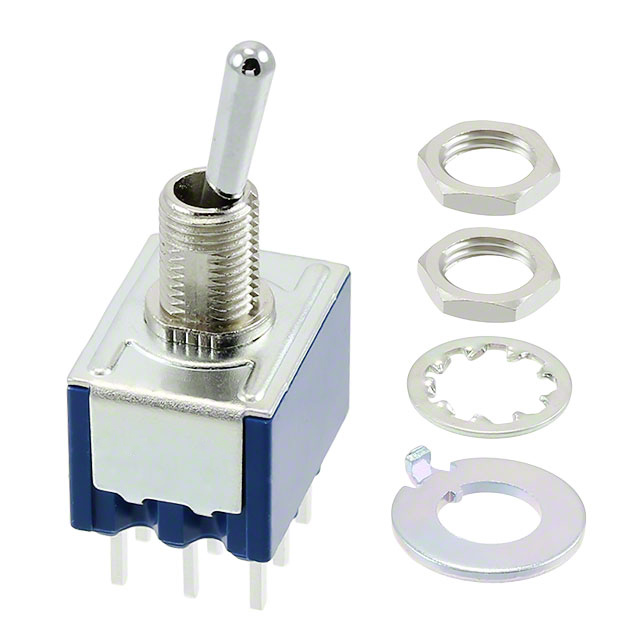

SWITCH TOGGLE 3PDT 6A 125V

Search across all available documentation for this part.

Obsolete

Nidec Components Corporation

SWITCH TOGGLE 3PDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8A3022-Z

Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	3PDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SWITCH TOGGLE 3PDT 6A 125V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Features	Voltage Rating - AC	Circuit	Actuator Type	Termination Style	Electrical Life	Current Rating (Amps)	Switch Function	Bushing Thread
Nidec Components Corporation 8A3022-Z	-30 ░C	85 °C	Non-Illuminated	30 V	6.5 mm	Sealed - Flux Protection	125 V	3PDT	Standard Round	PC Pin	50000 Cycles	4 A, 6 A	On-Off-On	1/4-40
