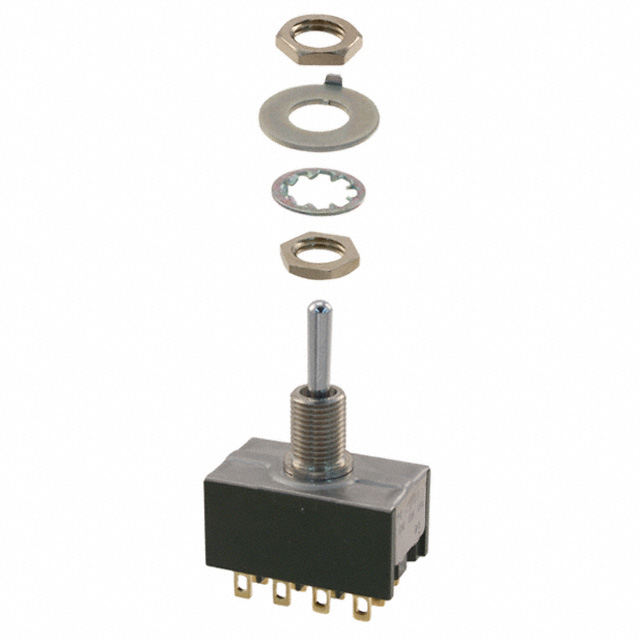

M2044SS1G01

Obsolete

NKK Switches

SWITCH TOGGLE DP3T 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DP3T 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2044SS1G01

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DP3T
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On-On
Termination Style	Solder Lug
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Bushing Thread	Voltage Rating - DC	Circuit	Illumination	Panel Cutout Dimensions [diameter]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Switch Function	Termination Style	Voltage Rating - AC	Actuator Material	Current Rating (Amps)	Electrical Life	Actuator Length [x]
NKK Switches M2044SS1W01	1/4-40	30 V	DP3T	Non-Illuminated	6.5 mm	Standard Round	-30 ░C	85 °C	Jumper needed to achieve triple throw	On-On-On	Solder Lug	125 V	Brass Chrome Plated	3 A 6 A	25000 Steps
NKK Switches M2044SS1W01-BG	1/4-40	30 V	DP3T	Non-Illuminated	6.5 mm	Standard Round with Cap	-30 ░C	85 °C	Jumper needed to achieve triple throw	On-On-On	Solder Lug	125 V	Brass Chrome Plated	3 A 6 A	25000 Steps	13.5 mm
NKK Switches M2044SS1W01-BE	1/4-40	30 V	DP3T	Non-Illuminated	6.5 mm	Standard Round with Cap	-30 ░C	85 °C	Jumper needed to achieve triple throw	On-On-On	Solder Lug	125 V	Brass Chrome Plated	3 A 6 A	25000 Steps	13.5 mm
NKK Switches M2044SS1G01	1/4-40	28 V	DP3T	Non-Illuminated	6.5 mm	Standard Round	-30 ░C	85 °C	Jumper needed to achieve triple throw	On-On-On	Solder Lug	28 V	Brass Chrome Plated	0.4 VA	50000 Cycles
NKK Switches M2044SS1W01-BC	1/4-40	30 V	DP3T	Non-Illuminated	6.5 mm	Standard Round with Cap	-30 ░C	85 °C	Jumper needed to achieve triple throw	On-On-On	Solder Lug	125 V	Brass Chrome Plated	3 A 6 A	25000 Steps	13.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DP3T Panel Mount
