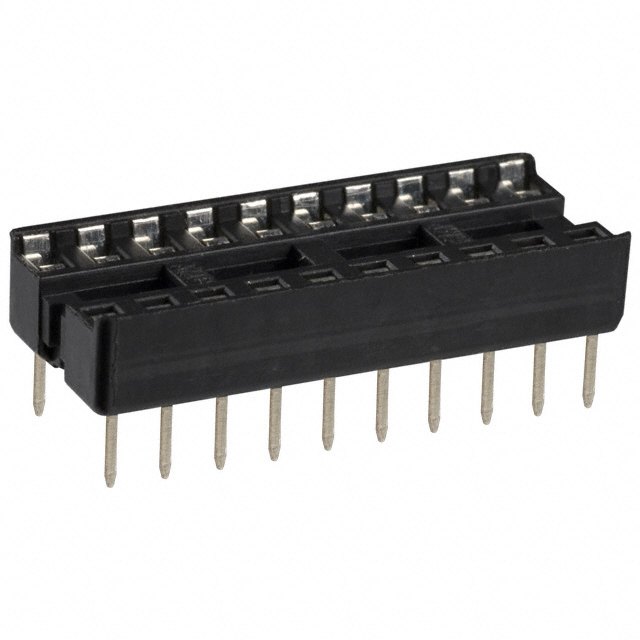

Specification	2-382568-0

Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Features	Closed Frame
Grid Columns	10
Grid Rows	2
Housing Material	Glass Filled, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Pitch - Post	0.1 in
Row Spacing	0.3 in
Termination	Solder
Termination Post Length	0.128 in
Type	DIP, 0.3" (7.62mm) Row Spacing

382568 Series

Part	Contact Resistance	Termination Post Length	Material Flammability Rating	Contact Material - Mating	Contact Finish - Post	Pitch - Mating	Grid Rows	Number of Positions or Pins (Grid)	Grid Columns	Pitch - Post	Contact Material - Post	Contact Finish - Mating	Termination	Housing Material	Features	Operating Temperature (Min)	Operating Temperature (Max)	Row Spacing	Type	Mounting Type
TE Connectivity AMP Connectors 2-382568-4	30 mOhm	0.128 in	UL94 V-0	Phosphor Bronze	Tin	0.1 in	2	24	12	0.1 in	Phosphor Bronze	Tin	Solder	Glass Filled Thermoplastic	Closed Frame	-55 °C	105 °C	0.3 in	0.3" (7.62mm) Row Spacing DIP	Through Hole

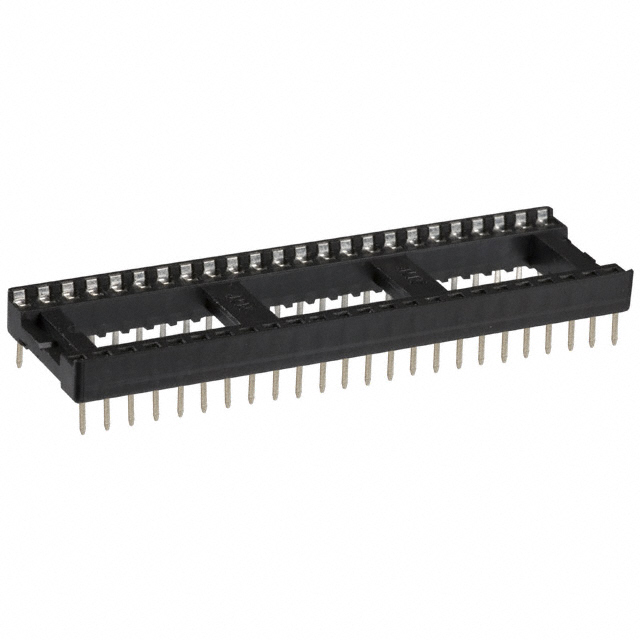

TE Connectivity AMP Connectors 4-382568-8	30 mOhm	0.128 in	UL94 V-0	Phosphor Bronze	Tin	0.1 in	2	48	24	0.1 in	Phosphor Bronze	Tin	Solder	Glass Filled Thermoplastic	Closed Frame	-55 °C	105 °C	0.6 in	0.6" (15.24mm) Row Spacing DIP	Through Hole
TE Connectivity AMP Connectors 2-382568-0	30 mOhm	0.128 in	UL94 V-0	Phosphor Bronze	Tin	0.1 in	2	20	10	0.1 in	Phosphor Bronze	Tin	Solder	Glass Filled Thermoplastic	Closed Frame	-55 °C	105 °C	0.3 in	0.3" (7.62mm) Row Spacing DIP	Through Hole
