PM12639S-R67M
ObsoleteBourns Inc.
FIXED IND 670NH 23A 1.4 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM12639S-R67M
ObsoleteBourns Inc.
FIXED IND 670NH 23A 1.4 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM12639S-R67M |
|---|---|
| Current Rating (Amps) | 23 A |
| DC Resistance (DCR) [Max] | 1.4 mOhm |
| Height - Seated (Max) [Max] | 0.146 in |
| Height - Seated (Max) [Max] | 3.7 mm |
| Inductance | 670 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.547 in |
| Size / Dimension [x] | 13.9 mm |
| Size / Dimension [y] | 0.531 in |
| Size / Dimension [y] | 13.5 mm |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

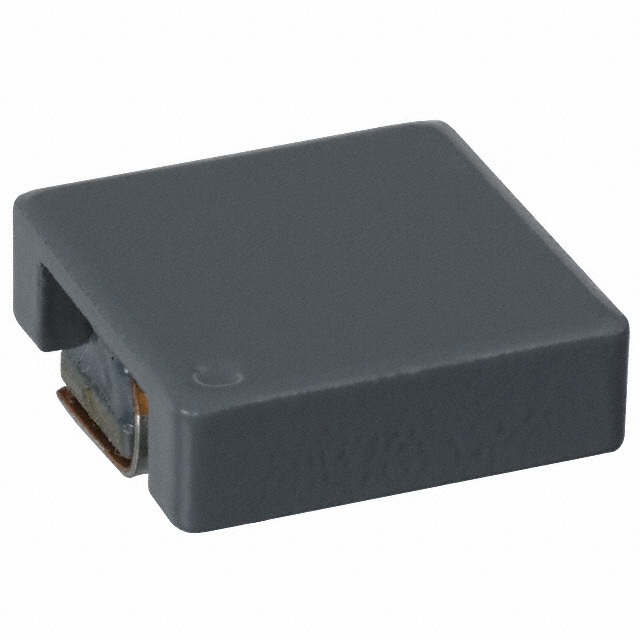

PM12639S Series
670 nH Shielded Wirewound Inductor 23 A 1.4mOhm Max Nonstandard
