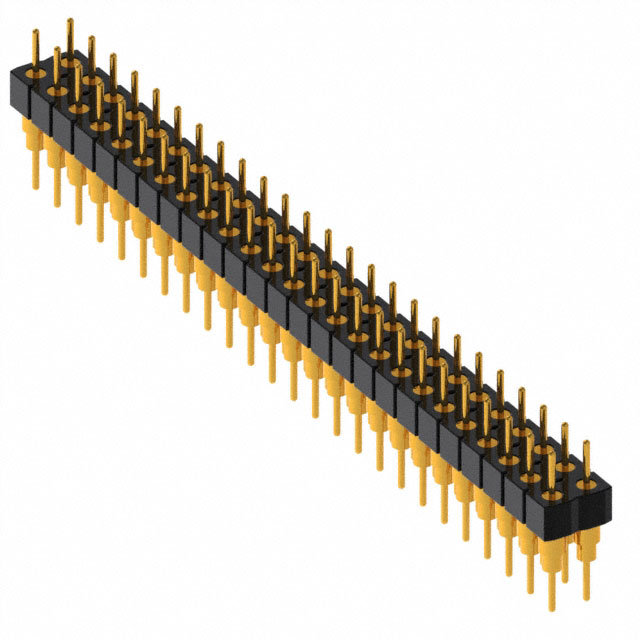

BBD-125-G-A

Active

Samtec Inc.

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BBD-125-G-A

Active

Samtec Inc.

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-125-G-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BBD-125 Series

Part	Number of Rows	Fastening Type	Termination	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shrouding	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Samtec Inc. BBD-125-G-B	2	Push-Pull	Solder	0.125 in	3.18 mm	-55 °C	125 °C	Nickel	All	Black	0.335 "	8.51 mm	2.54 mm	0.1 in	Polyester Glass Filled	0.1 in	2.54 mm	Through Hole	3.18 mm	0.125 in	Circular	0.51 µm	20 µin	Header	Unshrouded	50	14.86 mm	0.585 in	Male Pin	Gold	1.27 µm	50 µin
Samtec Inc. BBD-125-T-C	2	Push-Pull	Solder	0.125 in	3.18 mm	-55 °C	125 °C	Nickel	All	Black	0.585 in	14.86 mm	2.54 mm	0.1 in	Polyester Glass Filled	0.1 in	2.54 mm	Through Hole	3.18 mm	0.125 in	Circular			Header	Unshrouded	50		21.21 mm	Male Pin		1.27 µm	50 µin	0.835 in
Samtec Inc. BBD-125-T-B	2	Push-Pull	Solder	0.125 in	3.18 mm	-55 °C	125 °C	Nickel	All	Black	0.335 "	8.51 mm	2.54 mm	0.1 in	Polyester Glass Filled	0.1 in	2.54 mm	Through Hole	3.18 mm	0.125 in	Circular			Header	Unshrouded	50	14.86 mm	0.585 in	Male Pin		1.27 µm	50 µin
Samtec Inc. BBD-125-G-A	2	Push-Pull	Solder	0.125 in	3.18 mm	-55 °C	125 °C	Nickel	All	Black			2.54 mm	0.1 in	Polyester Glass Filled	0.1 in	2.54 mm	Through Hole	3.18 mm	0.125 in	Circular	0.51 µm	20 µin	Header	Unshrouded	50		11.68 mm	Male Pin	Gold	1.27 µm	50 µin	0.46 "	5.35 mm	0.211 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9	$ 24.92

Description

General part information

BBD-125 Series

Connector Header Through Hole 50 position 0.100" (2.54mm)
